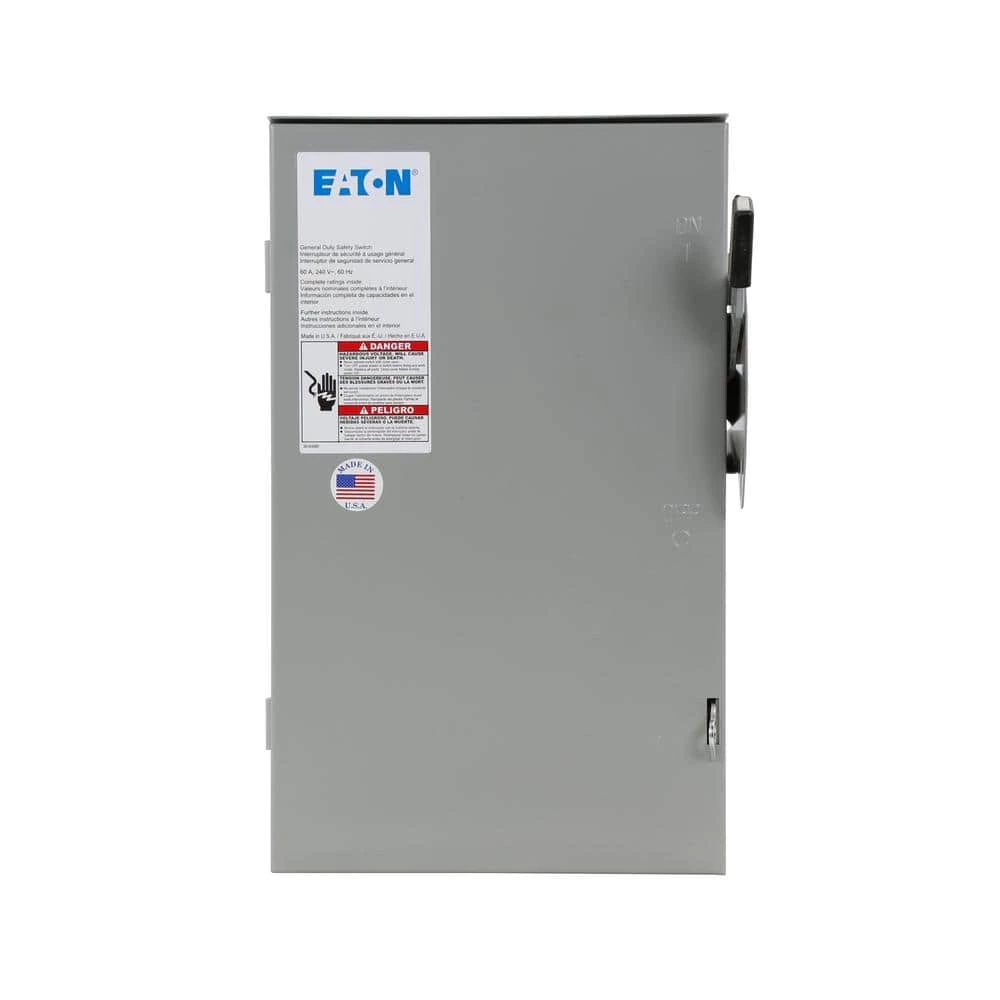

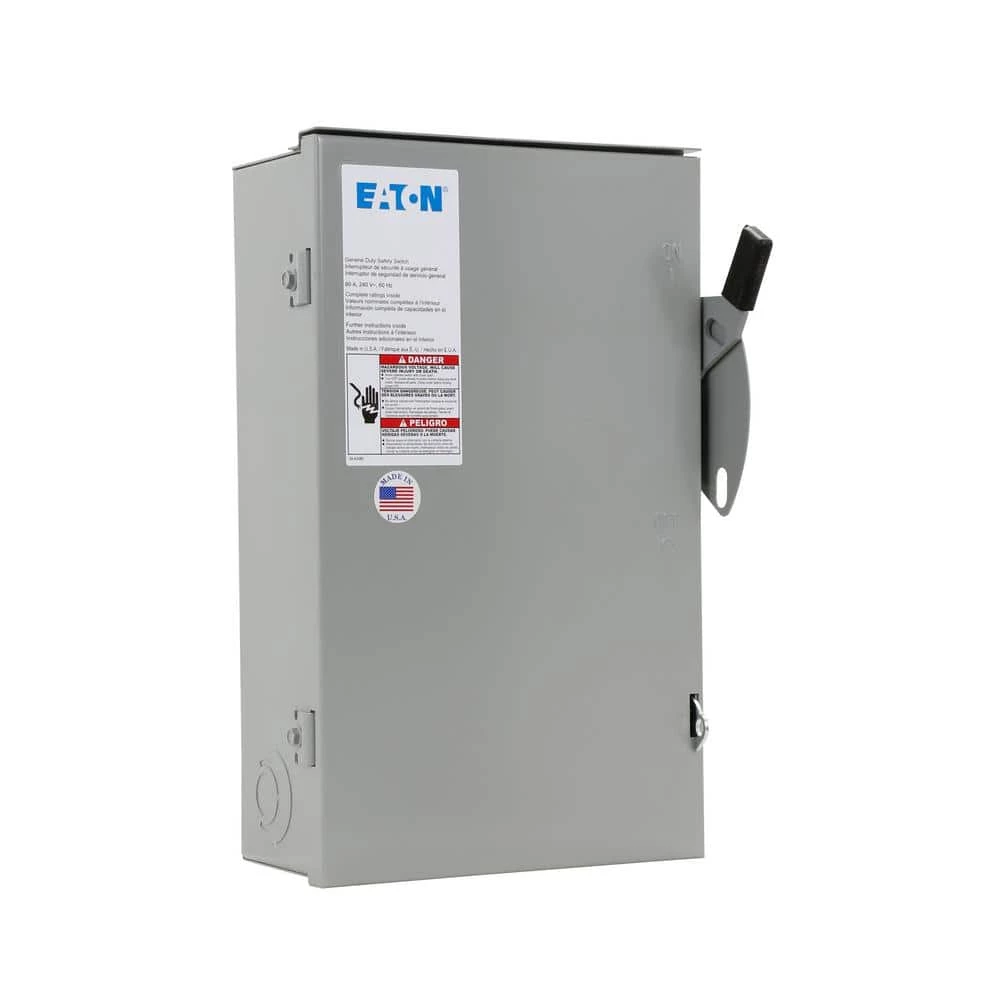

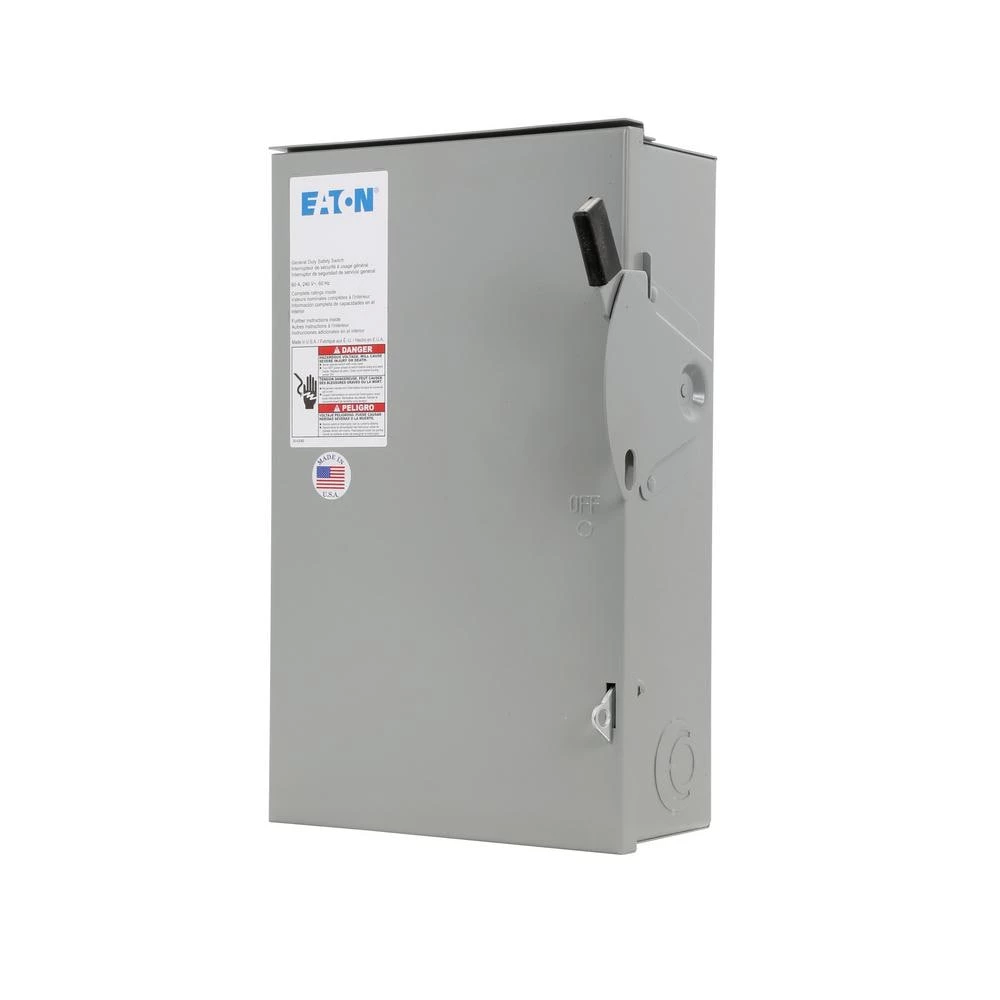

General Duty 60 Amp Non-Fusible Outdoor Safety Switch by Eaton

Non-fusible safety switches provide a means to manually connect or disconnect the load from the source. Switches are load break ready. This is a 60 Amp general duty non-fusible safety switch rated for outdoor use.

• Amp rating is 60 Amp
• Rated NEMA 3R for outdoor use
• Enclosure material is painted galvanized steel
• Fuse configuration is non-fusible
• Voltage rating is 240-Volt
• Number of wires is 2
• Number of poles is 2
• Ample wire bending space provides for easier installation

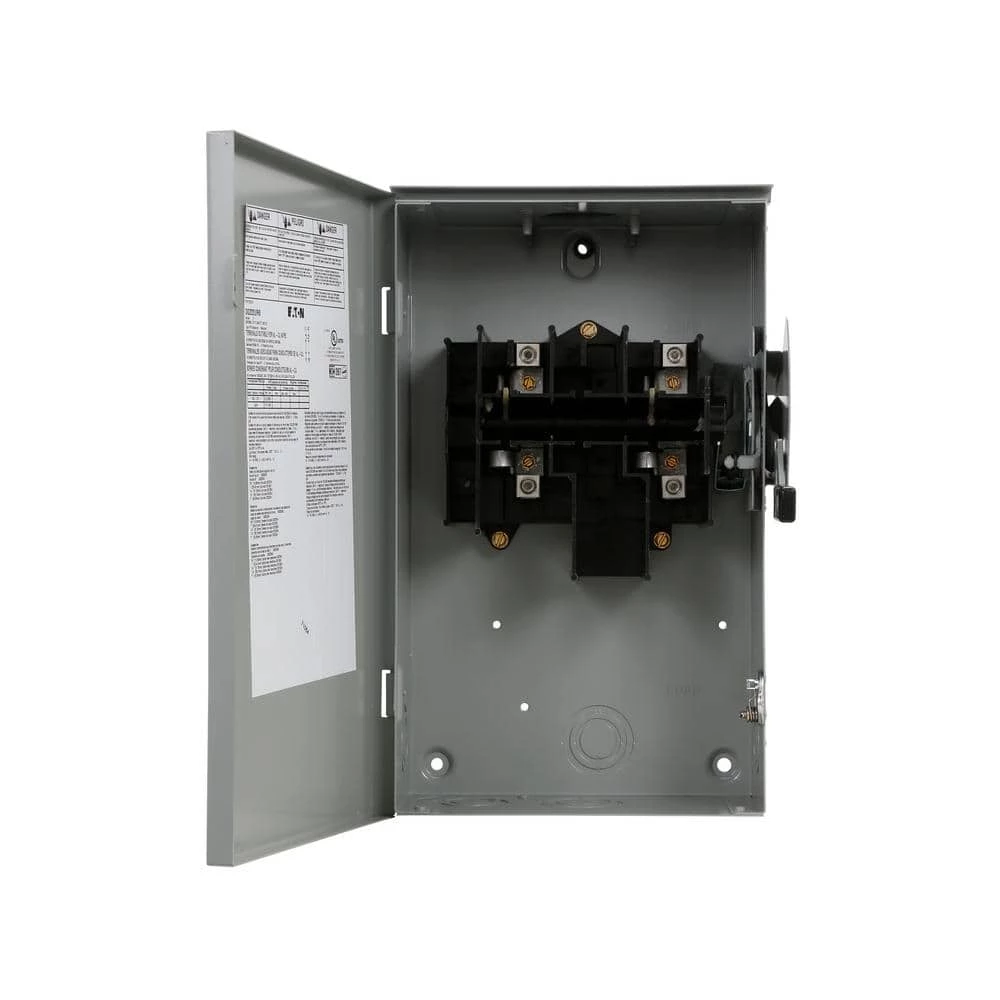

• Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
• Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety
• Double and triple padlocking capability increases personnel safety
• Handle position (ON or OFF) can be clearly seen from a distance and the length provides for easy operation
• Bilingual English/Spanish name-plate and door label on 30-100A aids understanding in locations where multiple languages are used
• Warning, switch is not approved for service entrance unless a neutral kit is installed
