General Duty 60 Amp Fusible Indoor Safety Switch by Eaton
Original price was: $87.64.$55.21Current price is: $55.21.
NEMA 1 rating for indoor use
Features double break rotary blade mechanism
Double and triple padlocking for enhanced safety
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.

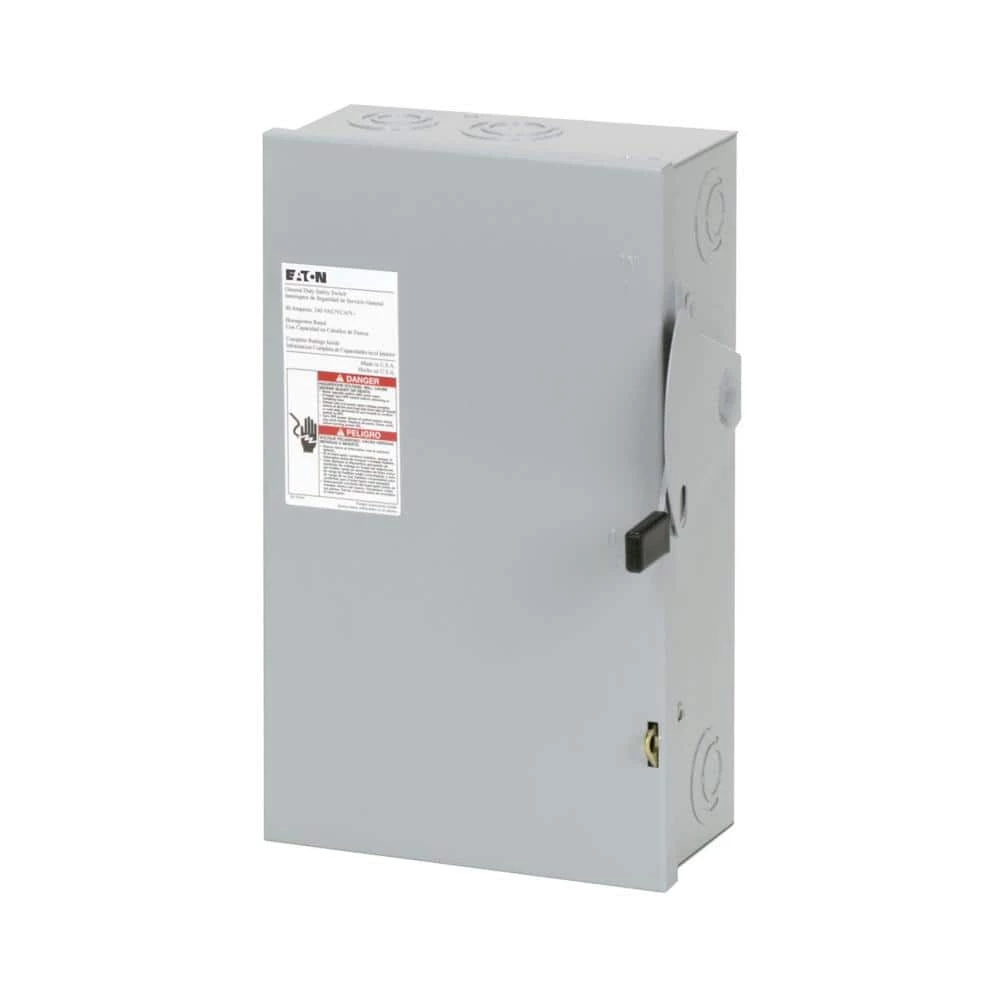

Fusible safety switches provide a means to manually open and close a circuit. The device also provides overcurrent protection by means of installed fuses. This is a 60 Amp general duty cartridge fusible safety switch rated for indoor use.
- Amp rating is 60 Amp
- Rated NEMA 1 for indoor use
- Enclosure material is painted steel
- Fuse configuration is fusible with neutral
- Fuse class provision: class H fuses
- Voltage rating is 240-Volt
- Number of wires is 3
- Number of poles is 2
- Ample wire bending space provides for easier installation
- Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
- Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety
- Double and triple padlocking capability increases personnel safety
- Handle position (ON or OFF) can be clearly seen from a distance and the length provides for easy operation
- A side opening door
| Automatic/Manual | Manual |
|---|---|
| Power Distribution Features | Fusible |
| Product Height (in.) | 6.9 in |
| Product Depth (in.) | 14.80 in |
| Manufacturer Warranty | 1 year |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 8.8 lb |
| Phase Type | 1 Phase |
| Electrical Product Type | Safety Switch |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Maximum Wattage | 0 W |
| Maximum Amperage (amps) | 60 |
| Indoor/Outdoor | Indoor |
| Fused | Fused |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Product Width (in.) | 9.70 in |
