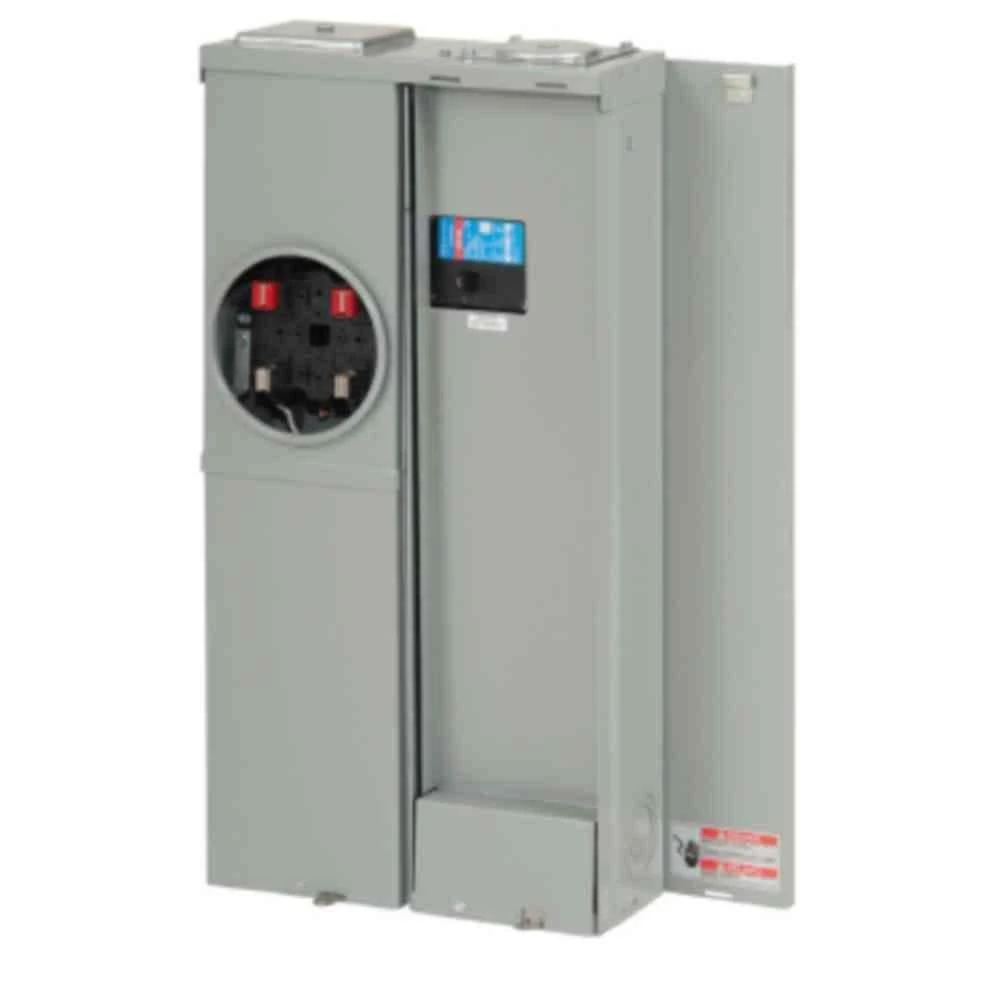

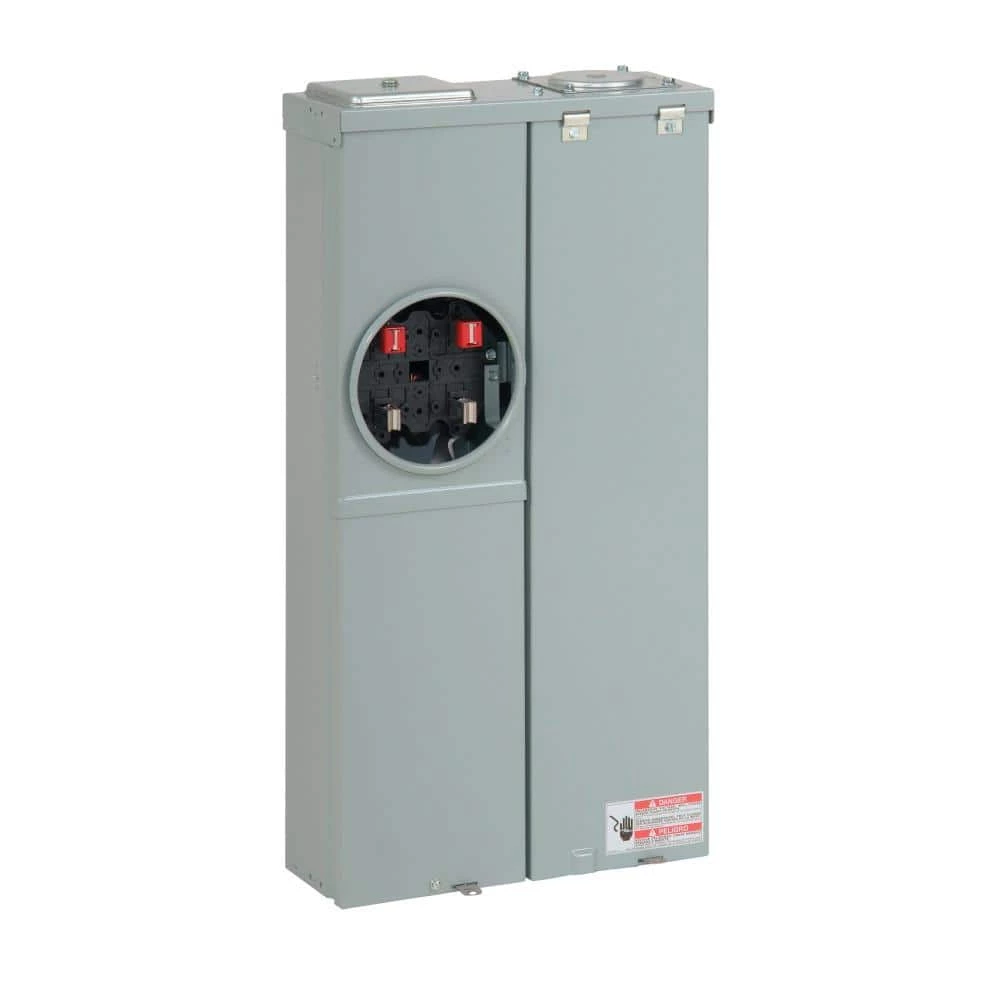

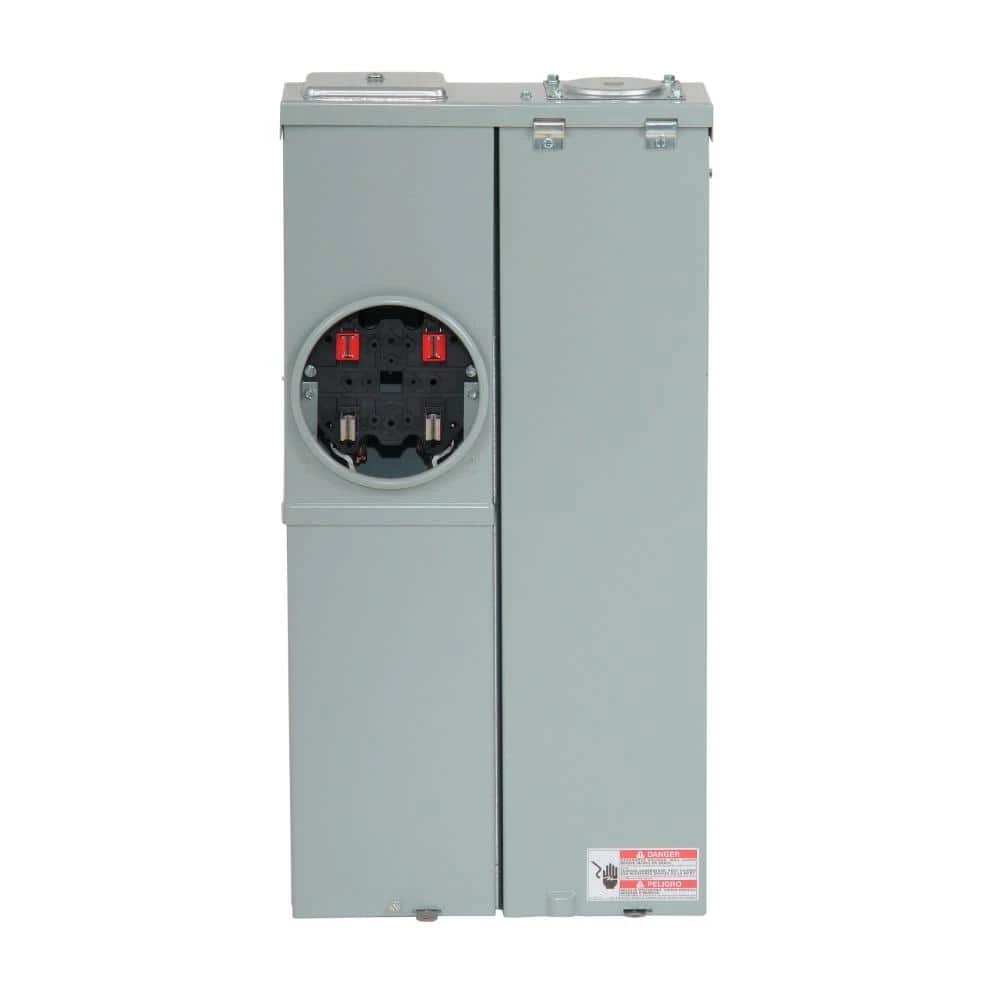

CH 200 Amp No Distribution EUSERC Main Breaker Meter Breaker Top Bottom Feed with Surface Cover by Eaton
Original price was: $319.00.$94.99Current price is: $94.99.
Commercial grade main breaker
One piece silver-flashed copper bus
Steel backpan for reliable breaker mounting
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Eaton’s residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center or a meter socket and main breaker combined in one enclosure. The CMBEB200BTS is a meter main that does not include a distribution section. This design provides the contractor with labor and material savings. The meter breakers are constructed to meet the latest NEC wire bending space requirements.
- Type CH EUSERC residential meter main
- Amperage rating: 200A
- Bus material: copper
- Rated NEMA 3R for outdoor use
- Feed type: overhead/underground
- Interrupt rating: 22 kAIC
- Main circuit breaker: CSR2200N
- Mounting: surface mounting
- Number of jaws: 4-jaws
- Number of sockets: 1
- Phase: single-phase
- Security: ring
- Voltage rating: 120/240V
- Used with: type CH breakers
| Electrical Product Type | Load Center |
|---|---|
| Phase Type | 1 Phase |
| Load center height (in.) | 28.8 |
| Load center depth (in.) | 5.4 |
| Manufacturer Warranty | 20 year Warranty |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 54.84 |
| Number of Spaces | 2 |
| Indoor/Outdoor | Indoor,Outdoor |
| Number of Gangs | 1 |
| Number of Circuits | 2 |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Bolt On |
| Meter Socket Type | Ring |
| Maximum Amperage (amps) | 200 |
| Load Center Type | Combination |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 14.45 |
