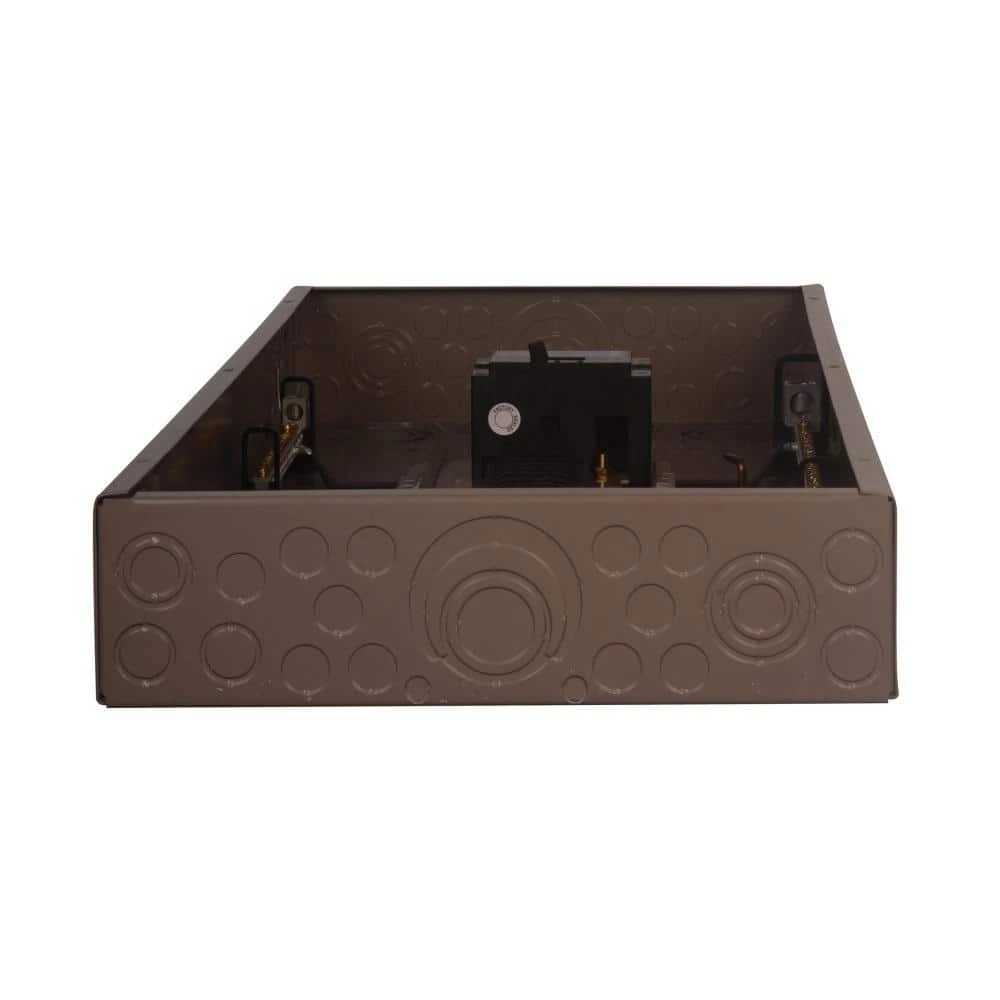

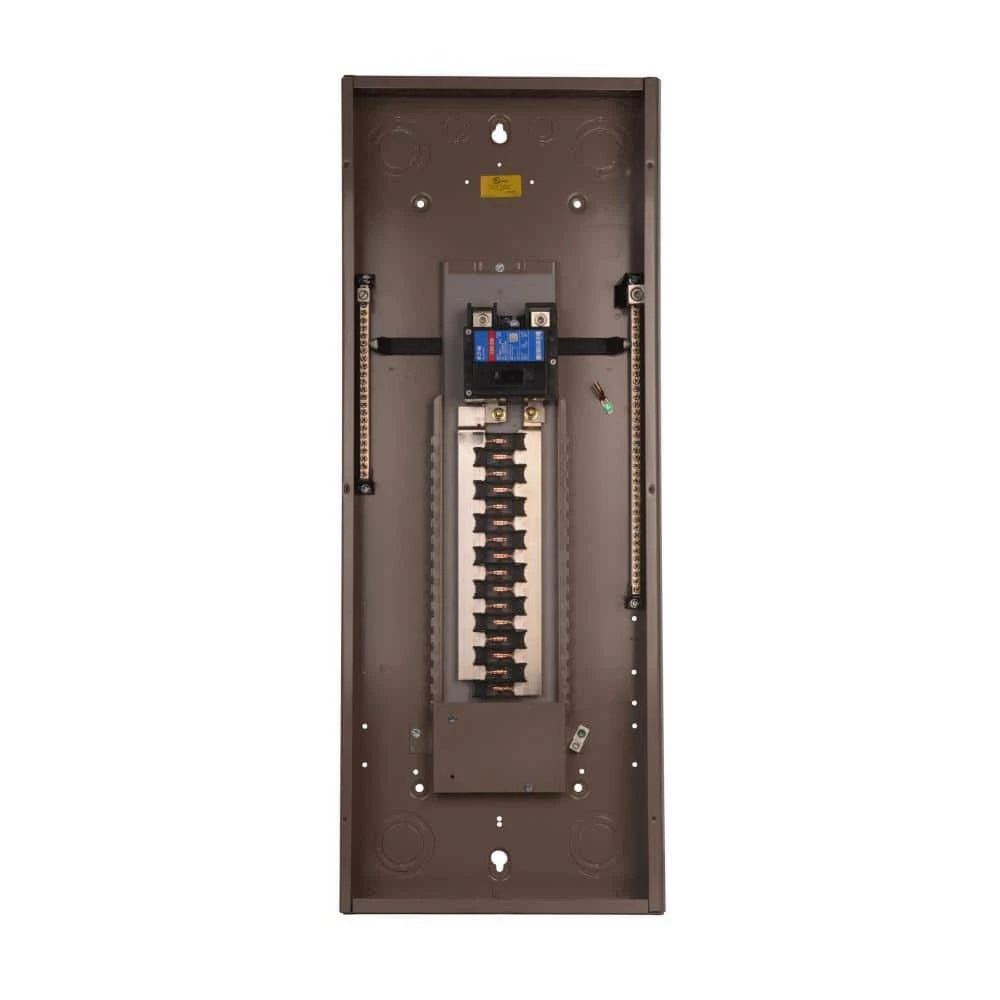

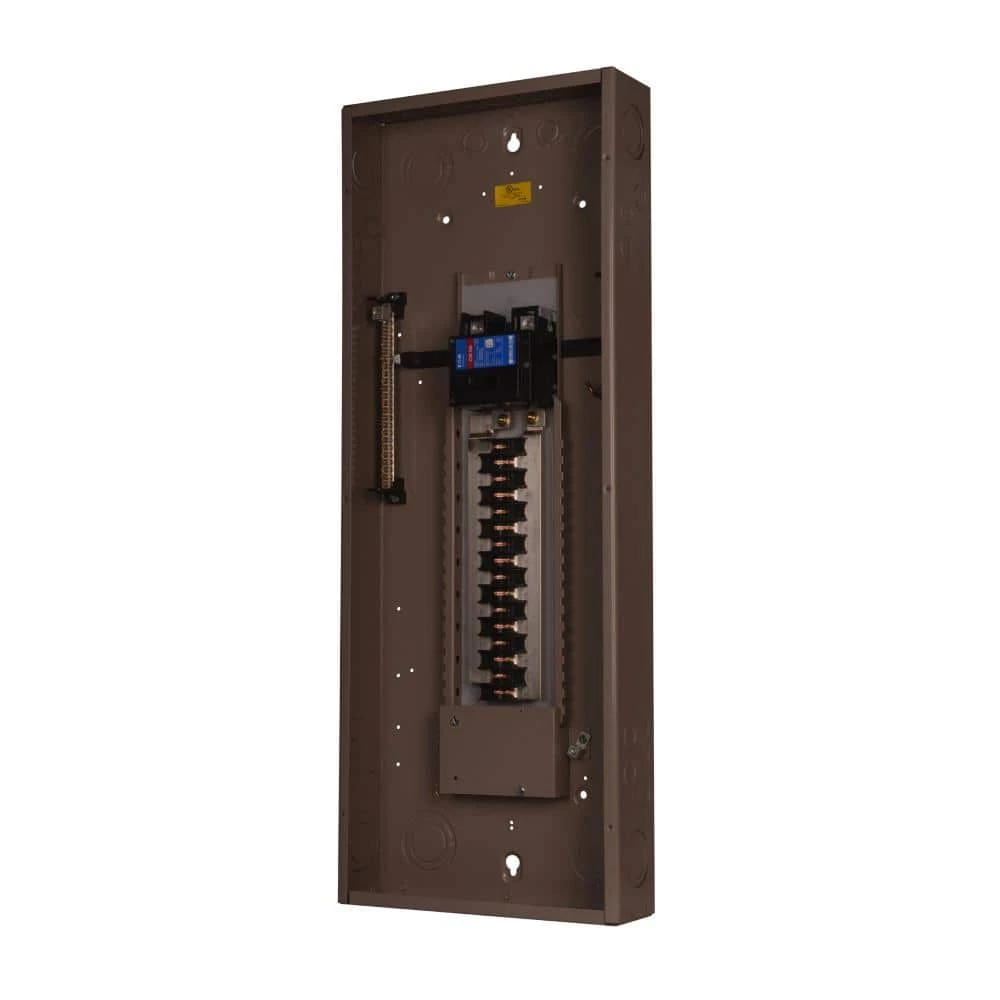

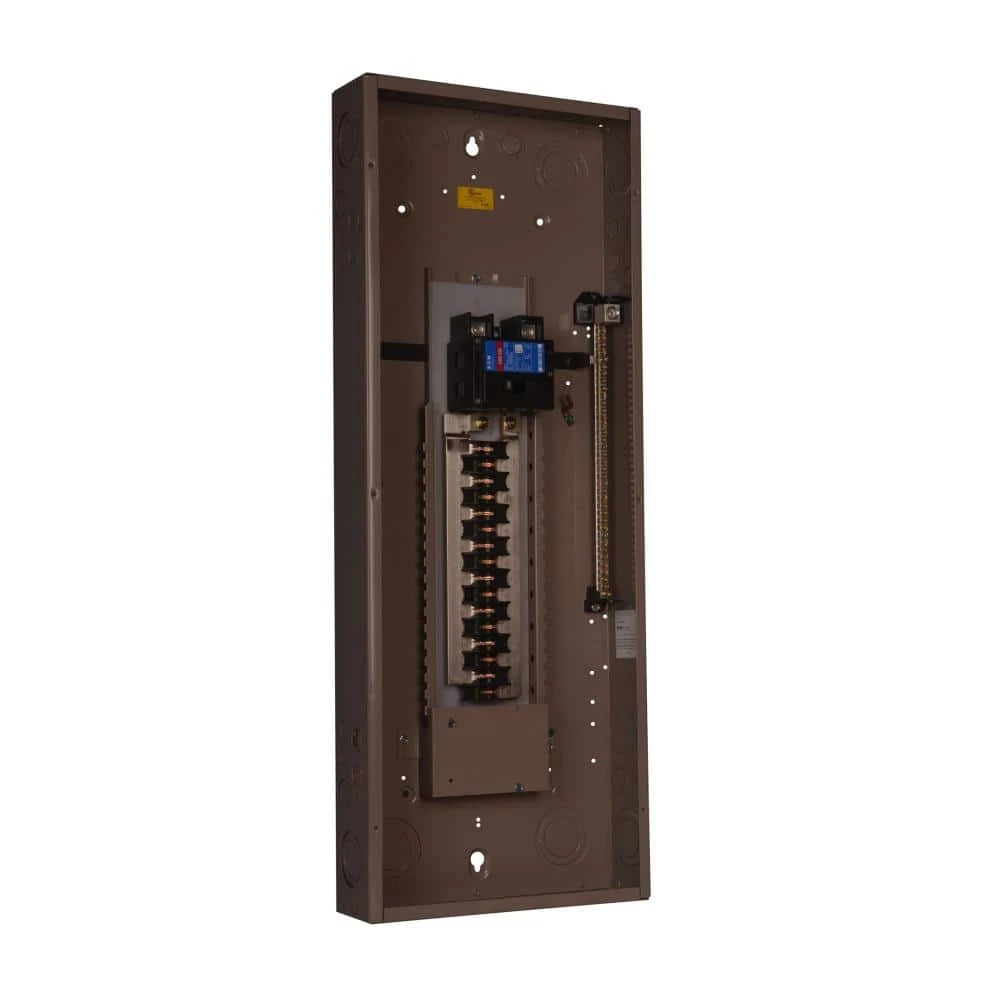

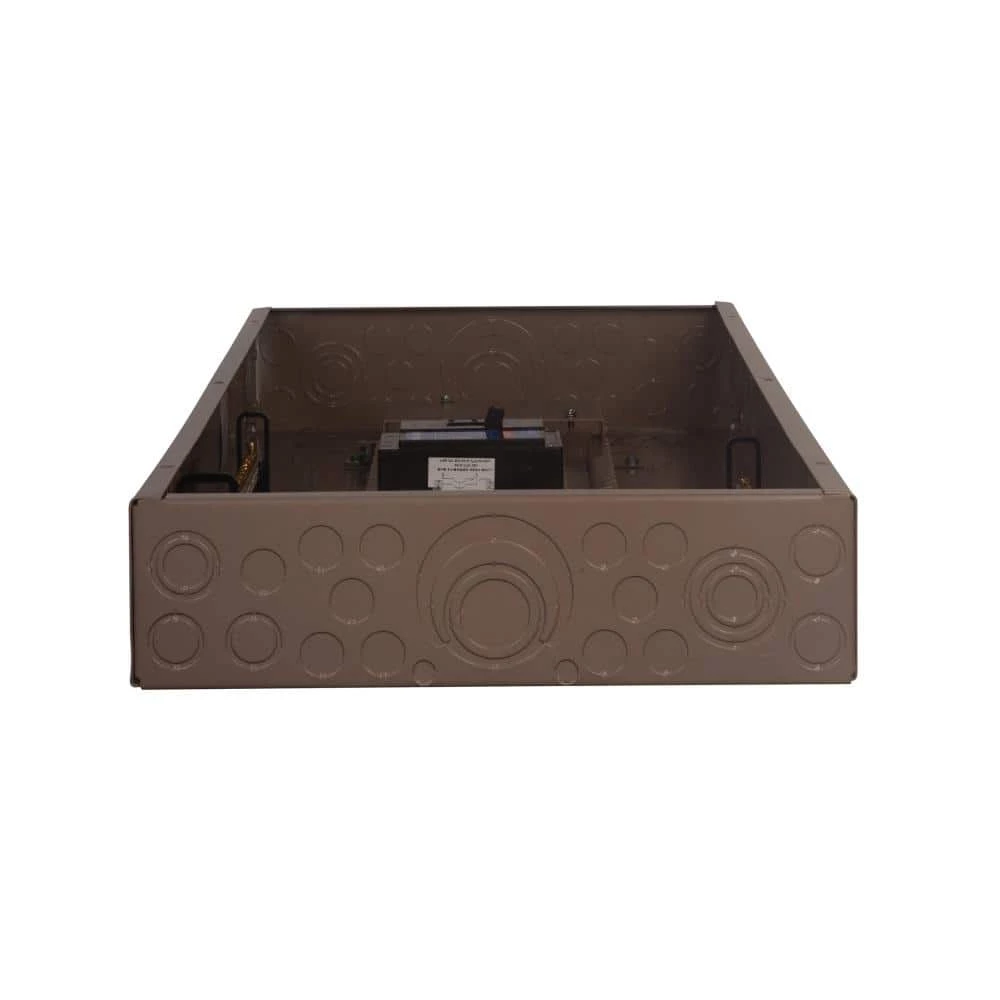

CH 200 Amp 32-Spaces 32-Circuits Indoor Main Breaker Surge Ready Loadcenter by Eaton
Original price was: $310.61.$95.99Current price is: $95.99.
Reduces surge current to protect home electronics
Rated NEMA 1 for indoor use only
Designed for use with Type CH breakers
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Eatons Type CH Surge ready Loadcenter provides a mounting provision for the CHSPT2Ultra (sold separately). Once the CHSPT2Ultra is installed in the surge ready loadcenter, it reduces the surge current, helping to protect sensitive home electronic equipment. A modified dead front cover (sold separately) allows for easy viewing of indicating lights.
- Amperage rating: 200 Amp
- Bus material: copper
- Rated nema 1 for indoor use
- Feed type: overhead or underground
- Number of circuits: 32
- Number of spaces: 32
- Phase: single-phase
- Voltage rating: 120/240-Volt
- Tangential center knockout easier installation for conduit applications
- Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
- Single keyhole mounting -one keyhole at the top provides easier mounting and leveling
- Drywall marking on enclosure – indicates proper mounting depth for flush applications
- CHSPT2 ultra, surge suppressor is sold separately
- CHSUR8KF combination cover is sold separately
- Used with: type CH breakers
| Electrical Product Type | Load Center |
|---|---|
| Product Weight (lb.) | 27 |
| Load center height (in.) | 3 |
| Load center depth (in.) | 32 |
| Manufacturer Warranty | Limited Lifetime |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 32 |
| Number of Circuits | 32 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 200 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 10 |
