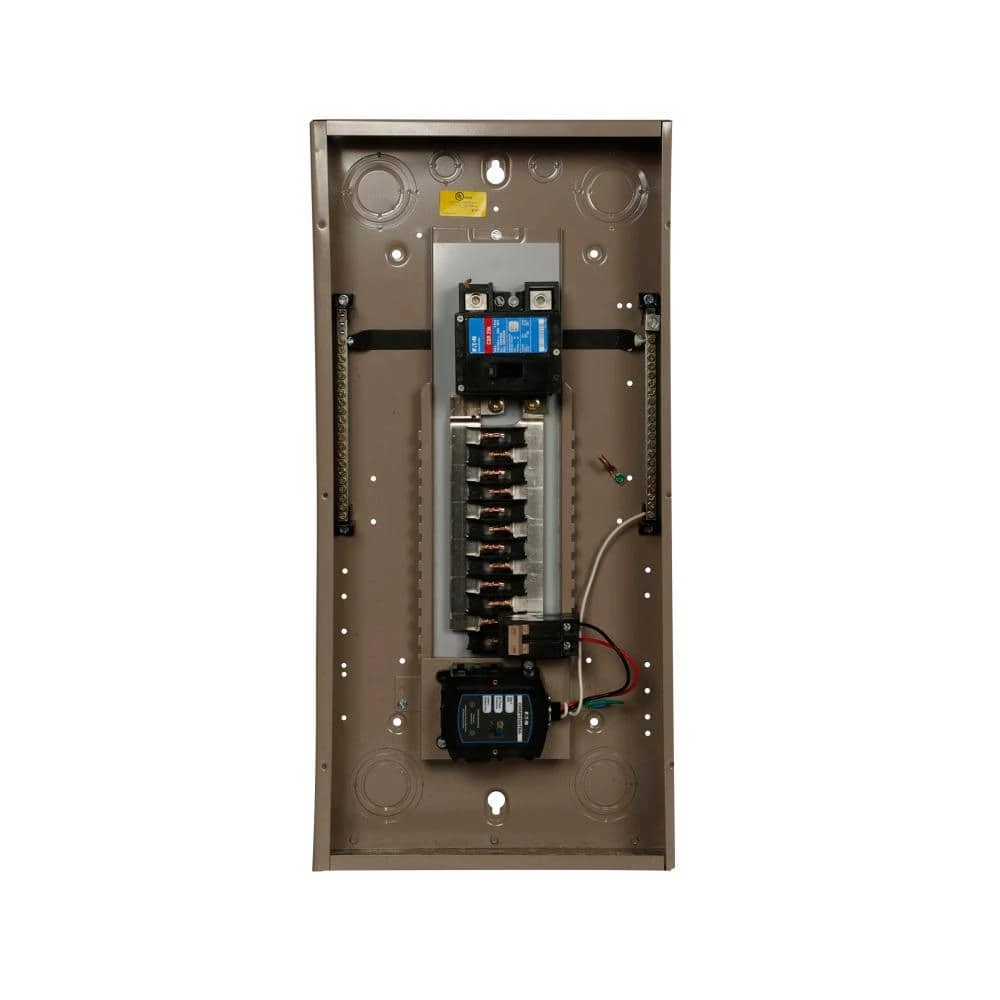

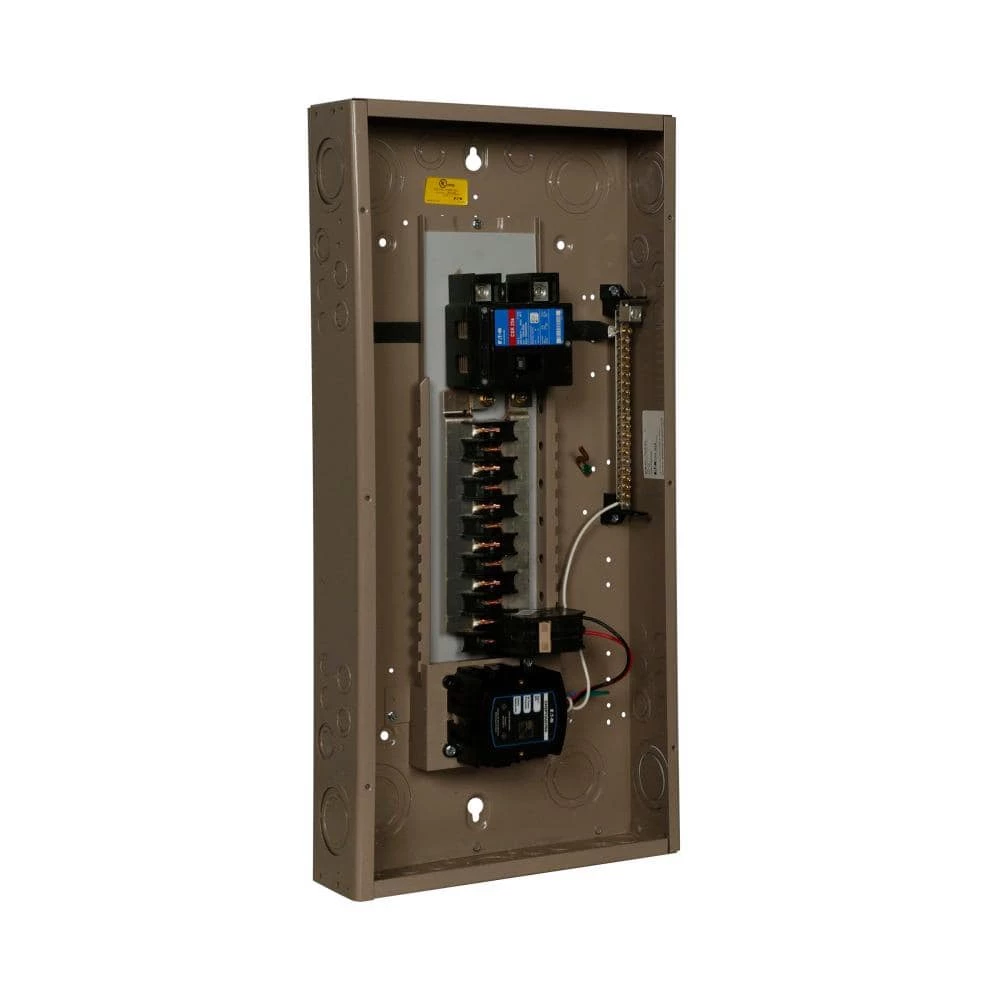

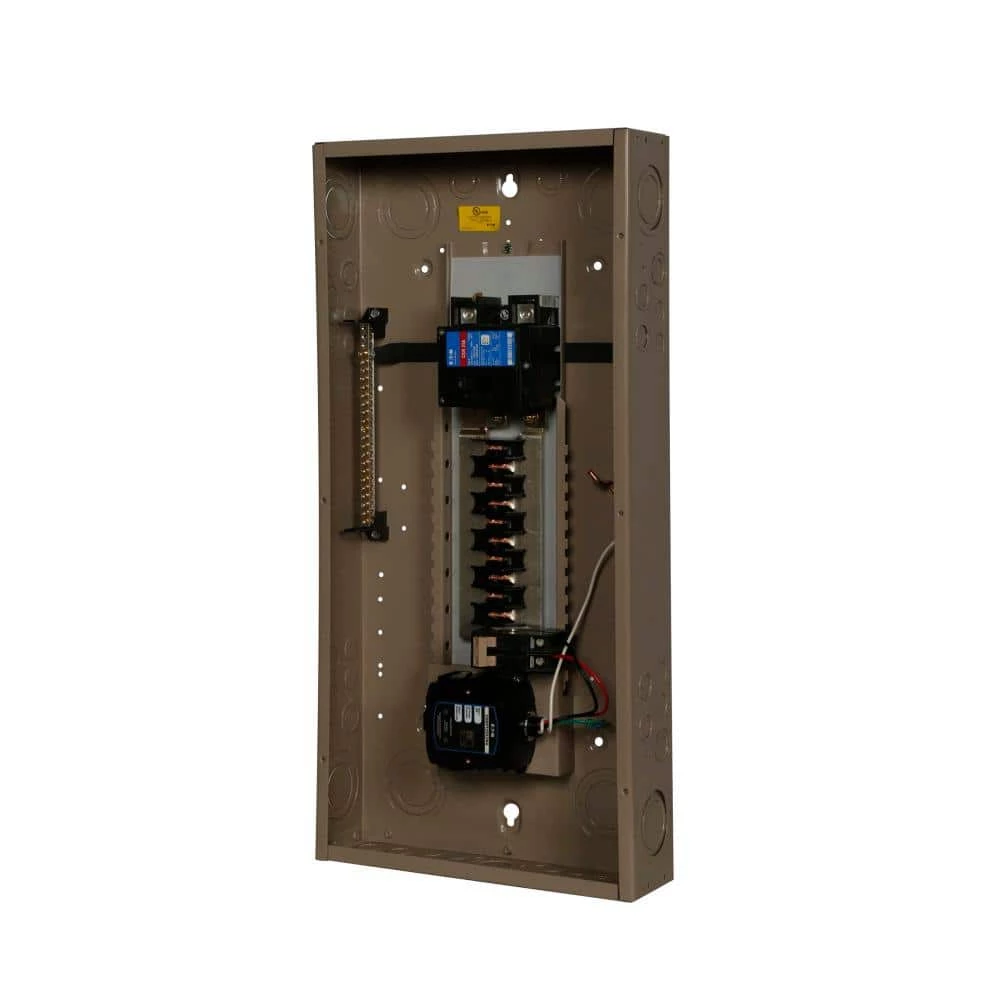

CH 100 Amp 24-Circuit Indoor Main Breaker Loadcenter with Surge Protection by Eaton

Due to the evolution of electronics and microprocessors in the home, there is a continuous challenge to provide quality (clean) power for electronic loads such as appliances, computers/home office and entertainment systems. Surges caused by lightning, utility grid switching and other sources travel on current carrying conductors throughout the home, which can affect and destroy sensitive electronic loads. Eaton offers a comprehensive family of surge products for use at service entrances. These products can help protect sensitive electronics against the damaging effects of surges.

• Includes factory integrated surge protector, CHSPT2ULTRA and a 2-pole 50 Amp circuit breaker
• Loadcenter cover must be purchased separately, for a combination style cover order the CHSUR8EF, for a surface style cover order the CHSUR8ES
• There is a knockout in the cover that allows the user to view the status indication lights on the surge suppressor
• These loadcenters increase the effectiveness of surge protection due to reduced lead length
• Amperage rating: 100 Amp
• 1-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
• Rated NEMA 1 for indoor use
• Feed type: bottom or top which allows for straight-in wiring that saves labor and material
• Phase: single-phase
• Single keyhole mounting – one keyhole at the top and bottom provides easier mounting and leveling
• Steel backpan provides solid and reliable breaker mountingsingle piece design for stability and durability
• Used with: Type CH breakers
