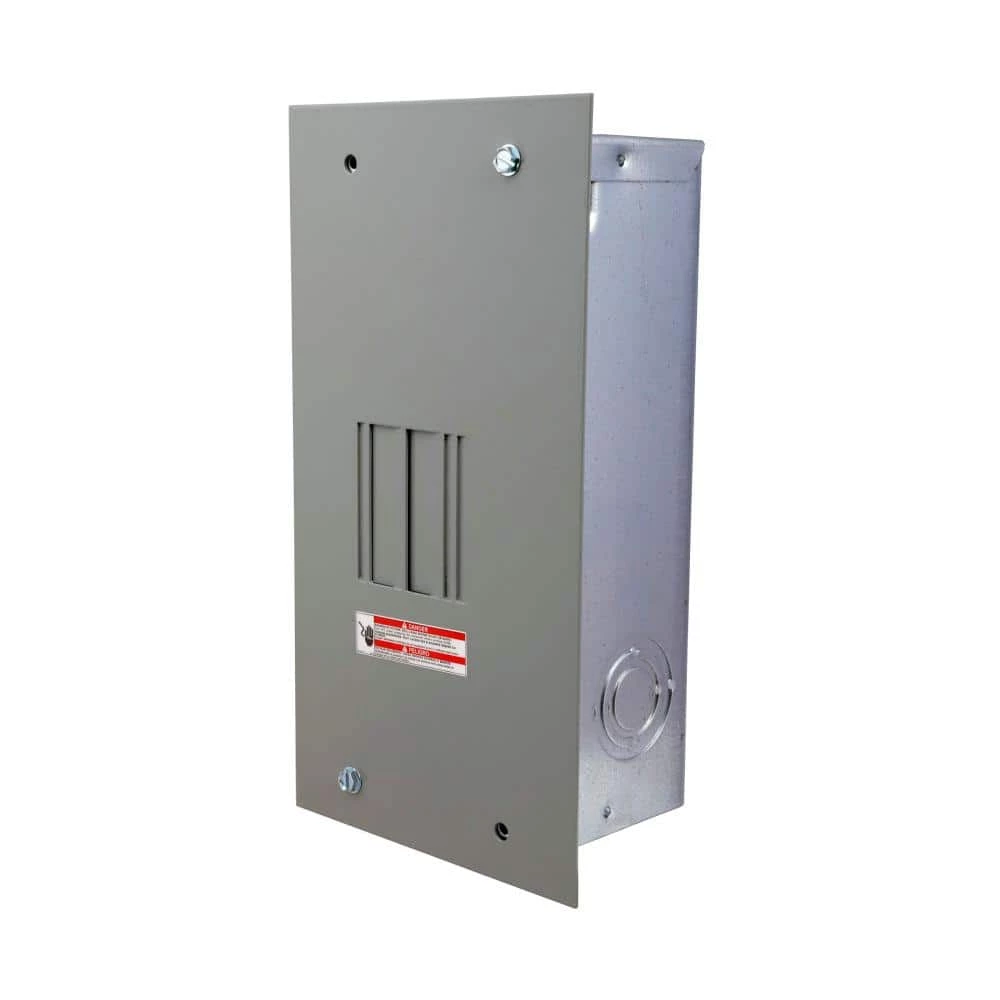

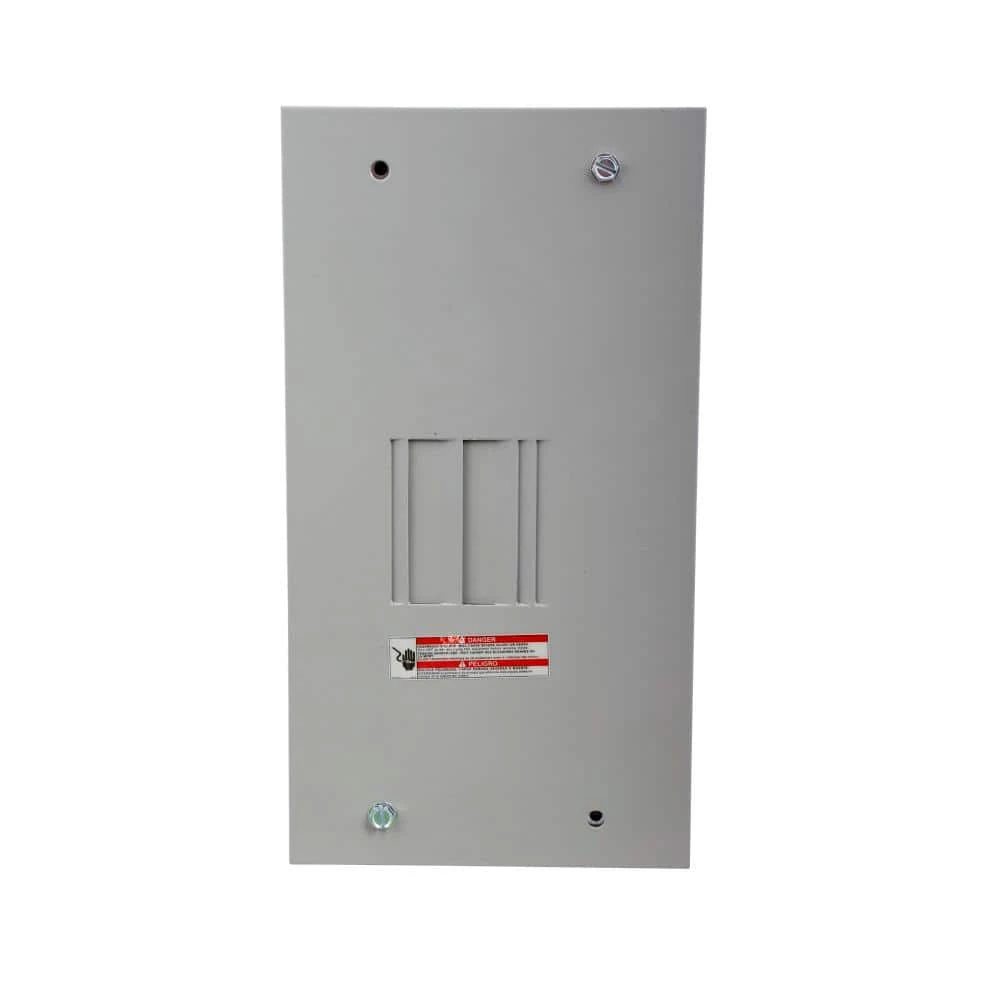

BR 70 Amp 2-Space 4-Circuit Indoor Main Lug Flush Mount by Eaton
Original price was: $18.75.$13.88Current price is: $13.88.

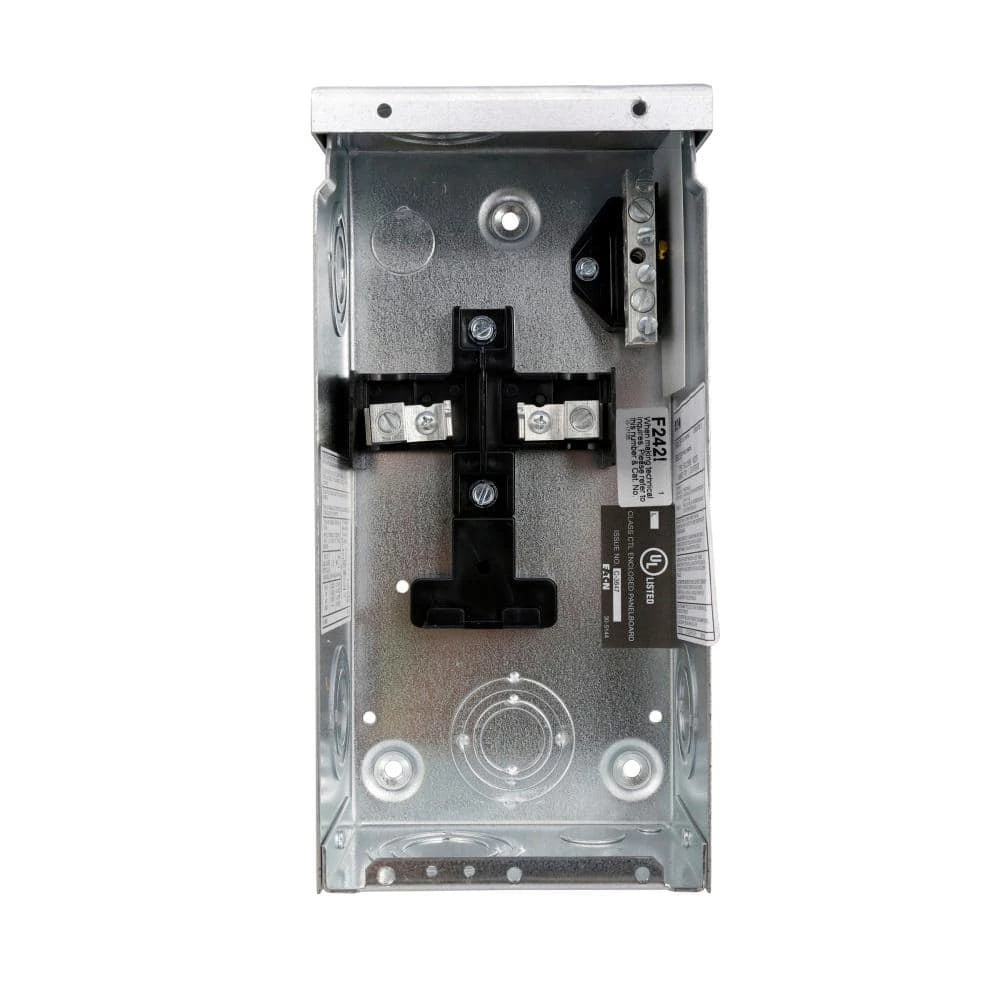

Steel backpan for reliable breaker mounting
Tin plated Aluminum bus

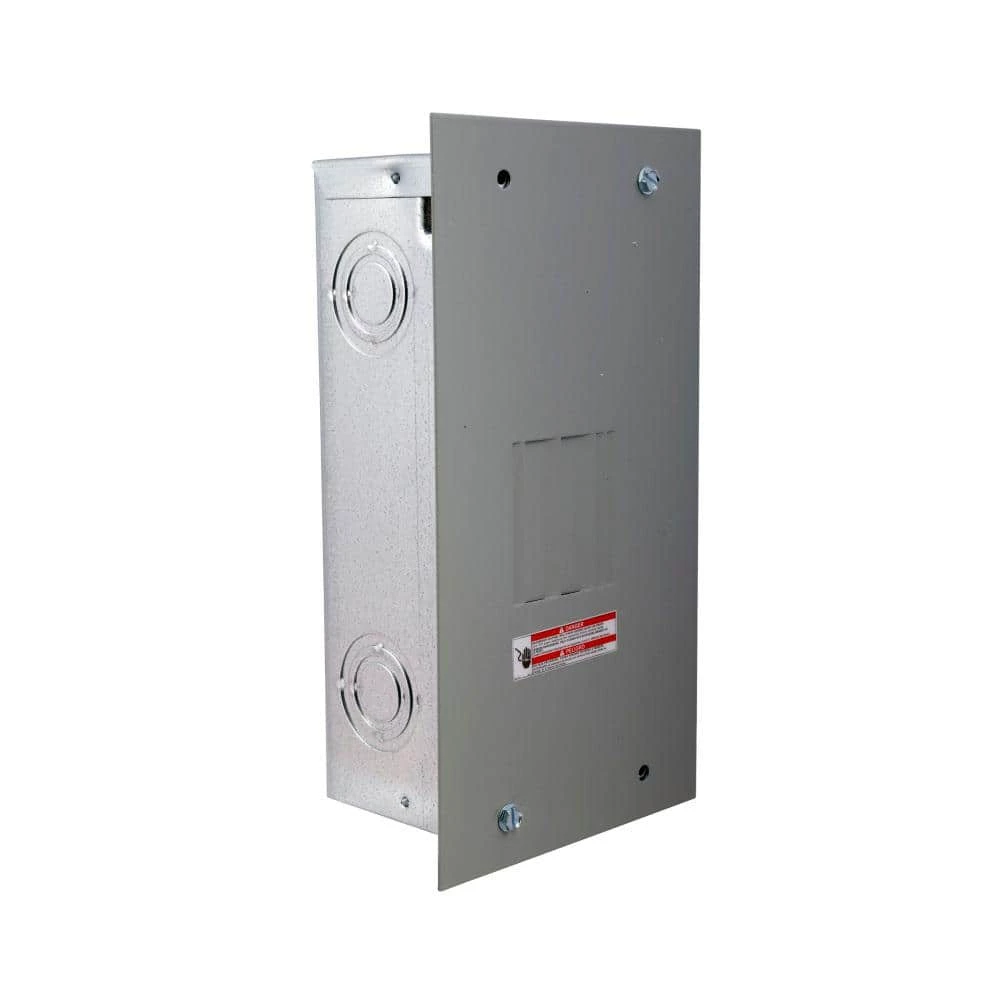

Knockouts are at the top, bottom, rear and sides for easy wiring
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Specially designed for easy installation, Eaton’s BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. Eaton has been a trusted name in electrical products for over 100-years.
- Use GBK5CS or GBK520 ground bar, sold separately
- Type: main lug
- Amperage rating: 70 Amp
- Bus material: aluminum
- Enclosure: NEMA 1
- Interrupt rating: 10 kAIC
- Number of circuits: 4
- Number of wires: 3-wire
- Phase: single-phase
- Voltage rating: 120/240-Volt
- Wire size: #8-2 AWG Cu/Al
- Used with: Type BR 1 in. breakers
- Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
- Drywall marking on enclosure indicates proper mounting depth for flush applications
- Single keyhole mounting – one keyhole at the top and bottom provides easier mounting and leveling
- Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 3.5 |
| Load center height (in.) | 3.4 |
| Load center depth (in.) | 10 |
| Manufacturer Warranty | 10 Year Limited |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 2 |
| Number of Circuits | 4 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 70 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 5 |
