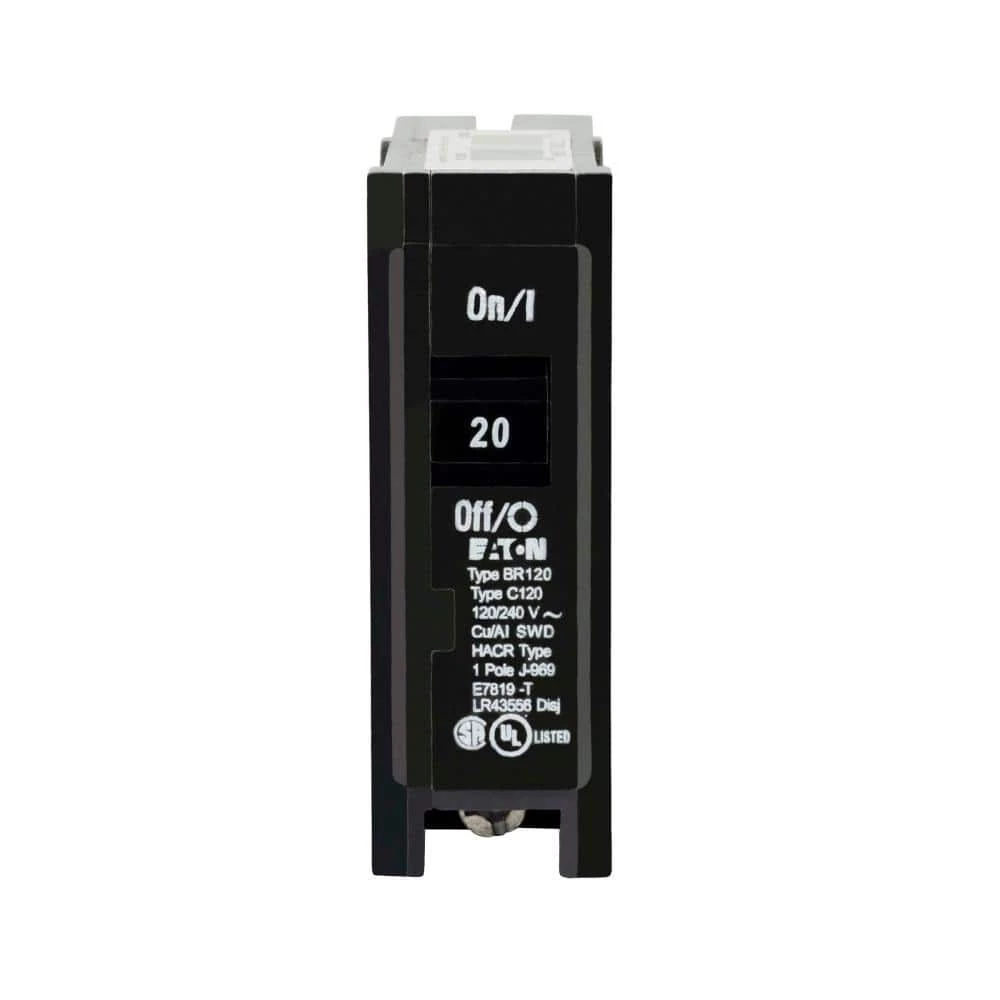

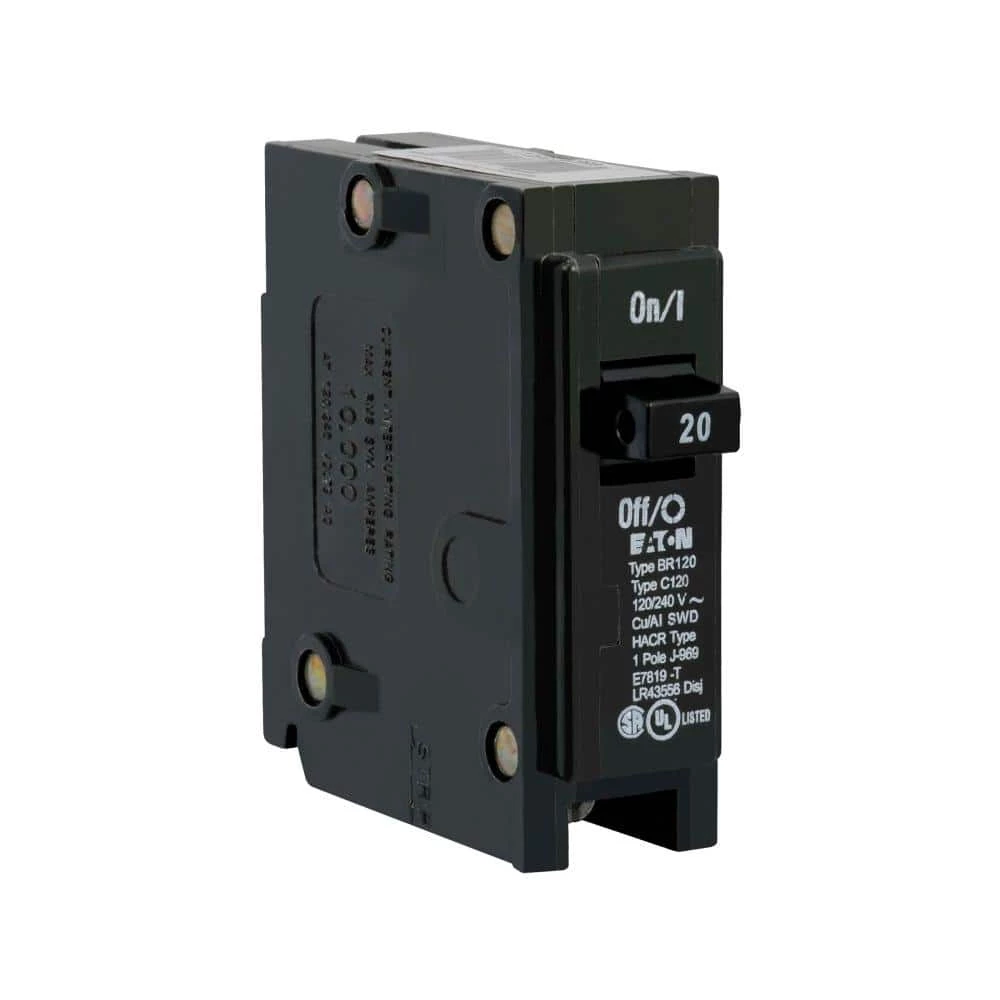

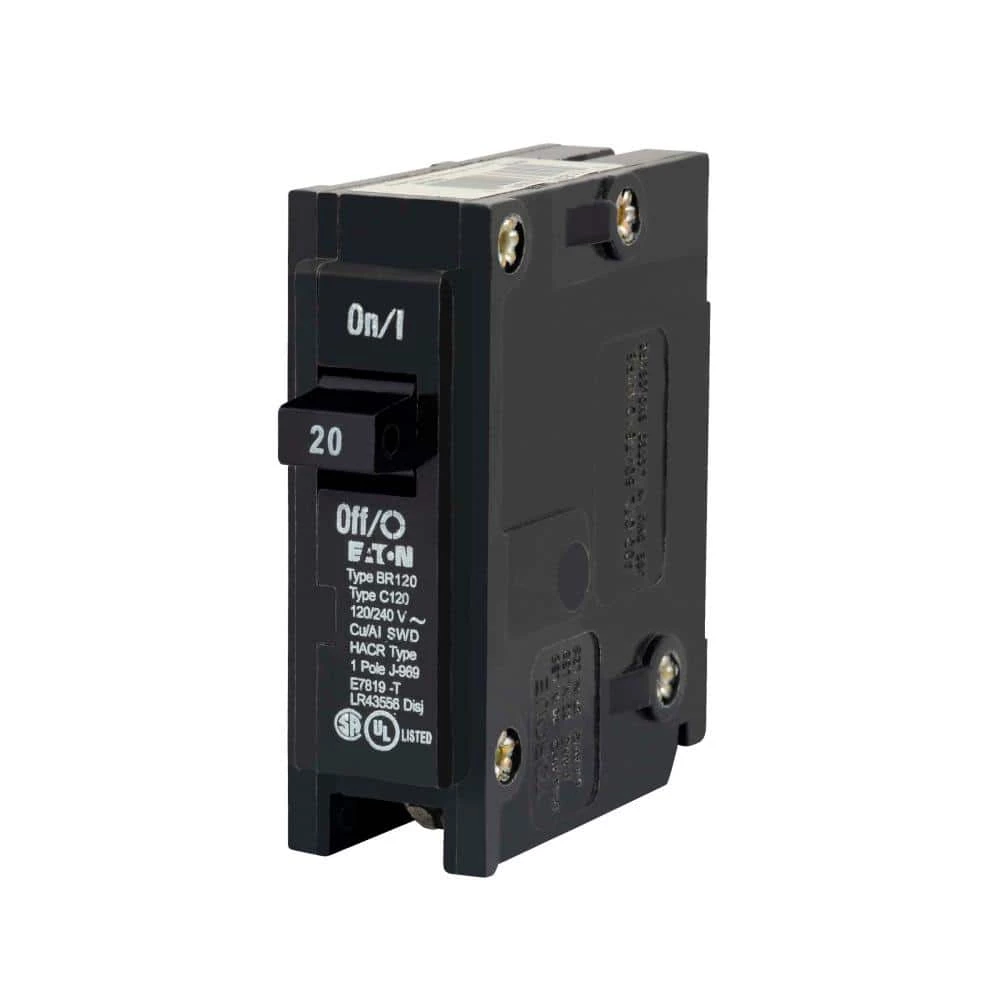

BR 20 Amp Single Pole Circuit Breaker by Eaton
Original price was: $7.76.$5.82Current price is: $5.82.
Thermal-magnetic trip curve that avoids nuisance tripping
All BR circuit breakers have rejection tab feature
Units feature a quick-make, quick-break switch mechanism
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
The Eaton Cutler-Hammer 20 Amp 1 in. Single-Pole Type BR Replacement Circuit Breaker is designed to protect house wires from overheating or causing a short-circuit. Single pole breaker applications include use with dishwashers, waste disposals, refrigerators, freezers, washing machines, televisions and window air conditioners. The UL-listed breaker is compatible with Westinghouse, Challenger and Bryant load centers and has a maximum load of 240-Volt.
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 20 Amp
- Single pole 1 in. wide breaker
- Trips to center position – must turn off then turn back on
- For use in type BR load centers
- Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
- Interrupt rating – 10 kAIC
- Voltage rating is 120/240-Volt
- Wire size – #14-4 AWG Cu/Al at 60 degree C or 75 degree C
- Gauge/number of wires with ground – 12/2
| Breaker Type | Single Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 20 |
| Mounting Type | Plug-On |
| Number of Poles | 1 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.26 |
| Returnable | 90-Day |
| Voltage (volts) | 120/240 |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | 5 Year Per the Warranty Statement |
| Product Depth (in.) | 2.89 |
| Product Height (in.) | 2.9245 |
| Product Width (in.) | 0.981 |
