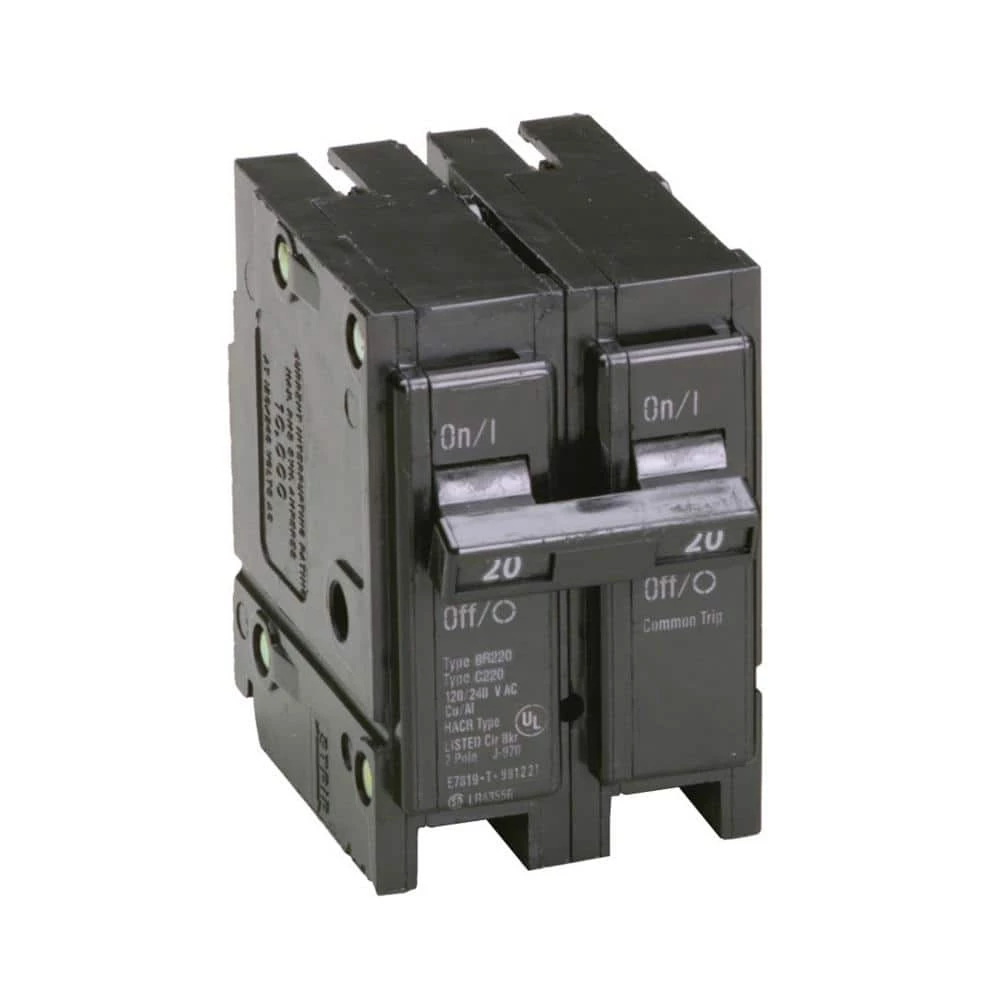

BR 20 Amp 2 Pole Circuit Breaker by Eaton
Original price was: $18.87.$11.51Current price is: $11.51.
Protects the wire from overloads and short-circuits
Breaker trips to center position
Works with Westinghouse, Challenger and Bryant load centers
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
The Eaton Cutler-Hammer 20 Amp 2 in. Double-Pole Type BR Replacement Circuit Breaker is UL-listed and compatible with Westinghouse, Challenger and Bryant load centers. The circuit breaker is designed for overload and short-circuit protection of your home electrical system. The breaker trips to the center position and has a maximum load of 240-Volt.
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 20 Amp
- Double pole 2 in. wide breaker
- Trips to center position – must turn off then turn back on
- For use in type BR load centers
- Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
- Interrupt rating – 10 kAIC
- Voltage rating is 120/240-Volt
- Wire size – #14-4 AWG Cu/Al at 60 degree C or 75 degree C
- Gauge/number of wires with ground – 12/3
| Breaker Type | Double Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 20 |
| Mounting Type | Plug-On |
| Number of Poles | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.52 |
| Returnable | 90-Day |
| Voltage (volts) | 120/240 |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | 5 Year Per the Warranty Statement |
| Product Depth (in.) | 3 in |
| Product Height (in.) | 3 in |
| Product Width (in.) | 1.96 |
