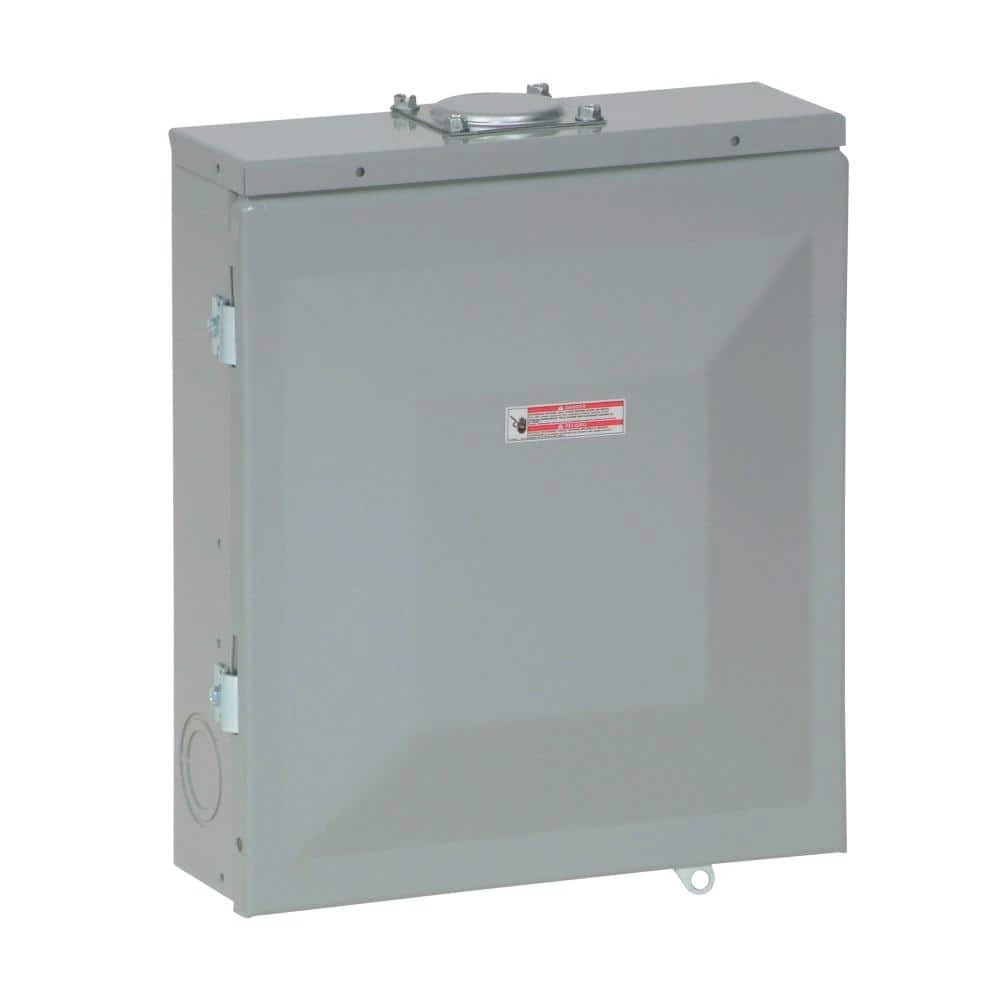

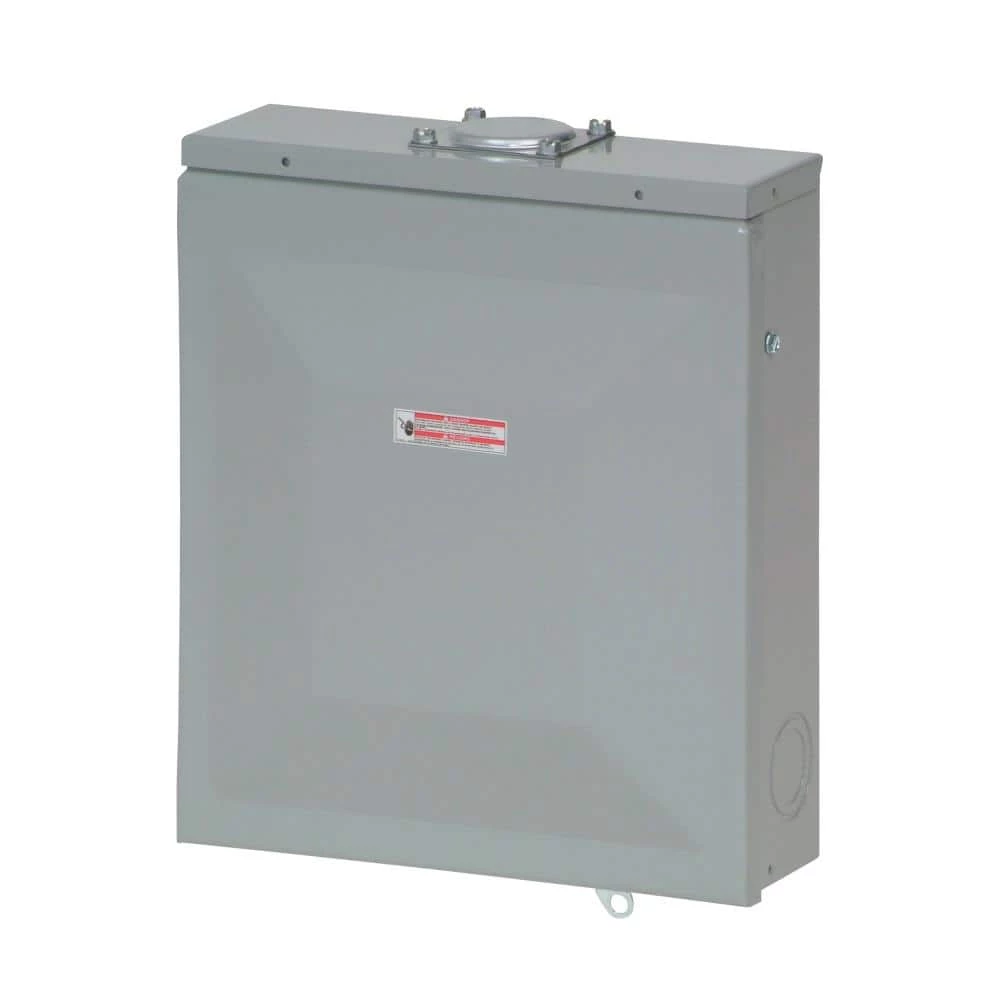

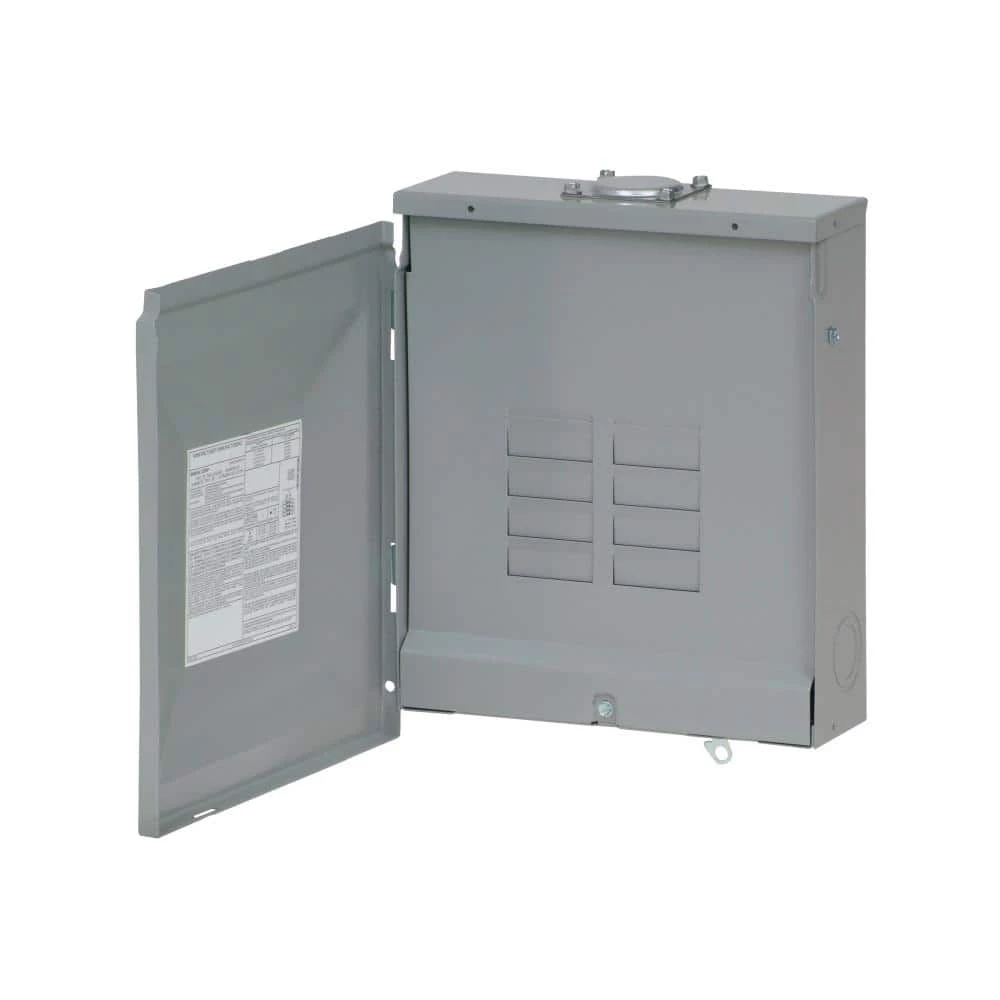

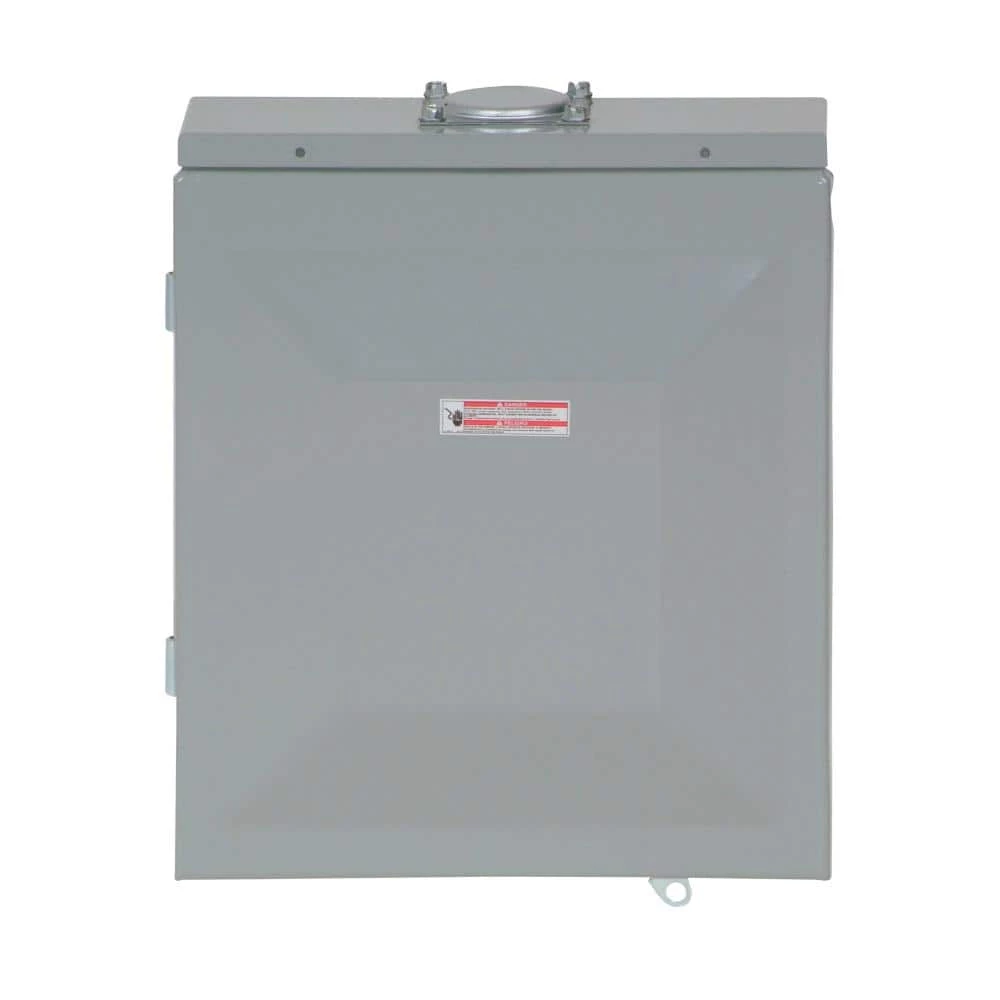

BR 125 Amp 8-Space 16-Circuit Outdoor Main Lug Loadcenter with Cover by Eaton
Original price was: $66.64.$41.32Current price is: $41.32.
Tin plated Aluminum bus
Steel backpan for reliable breaker mounting
Optimized knockout locations for easy wiring and installation
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Specially designed for easy installation, Eaton’s BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR816L125RP is a 125 Amp outdoor main lug with 8-spaces and 16-circuits.
- Amperage rating: 125 Amp
- Bus material: aluminum
- Rated NEMA 3R for outdoor use
- Interrupt rating: 10 kAIC
- Mounting: combination
- Number of circuits: 16
- Number of spaces: 8
- Phase: single-phase
- Voltage rating: 120/240-Volt
- Wire size: #14-1/0 AWG Cu/Al at 60 degree C or 75 degree C
- Tangential center knockout easier installation for conduit applications
- Steel back pan provides solid and reliable breaker mounting single piece design for stability and durability
- Single keyhole mounting – one keyhole at the top provides easier mounting and leveling
- Drywall marking on enclosure – indicates proper mounting depth for flush applications
- Used with: type BR breakers
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 10.9 |
| Load center height (in.) | 13.0 |
| Load center depth (in.) | 3.56 |
| Manufacturer Warranty | 10 Years |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Outdoor |
| Number of Spaces | 8 |
| Number of Circuits | 16 |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 11.0 |
