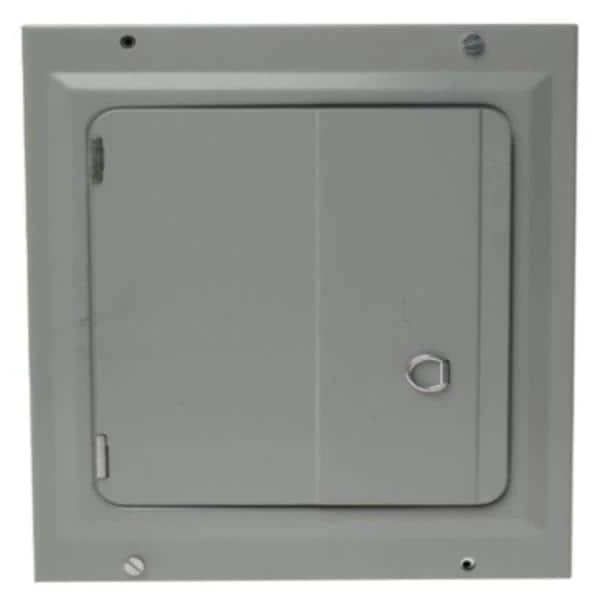

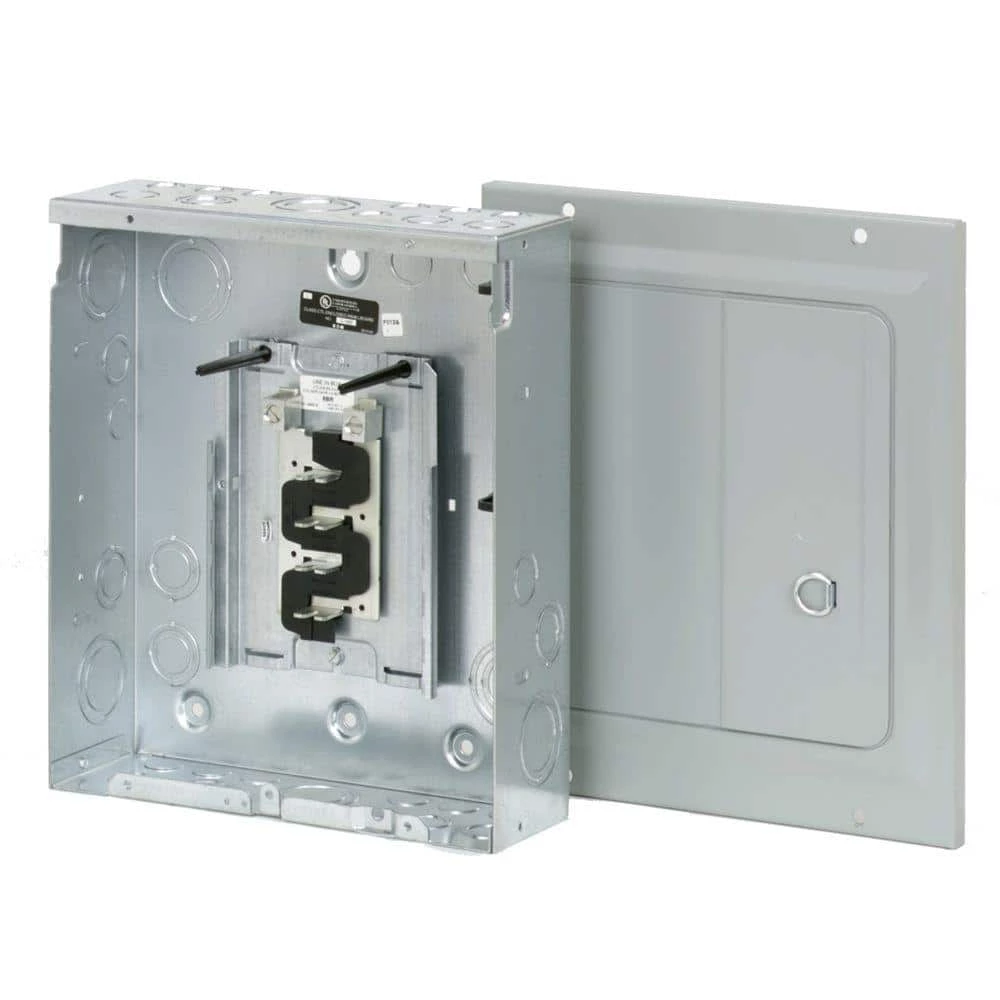

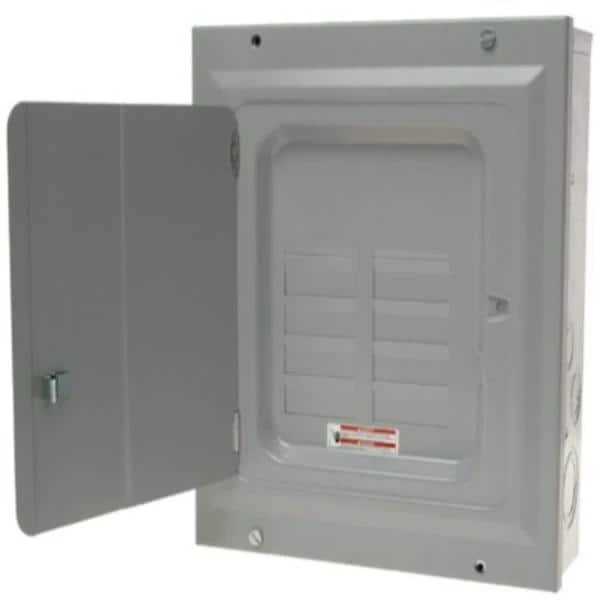

BR 125 Amp 8 Space 16 Circuit Indoor Main Lug Loadcenter with Surface Door by Eaton

Specially designed for easy installation, Eaton’s BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR816L125SDP is a 125 Amp outdoor main lug with 8 spaces and 16 circuits.

• Amperage rating: 125A
• Bus material: aluminum
• Rated NEMA 1 for indoor use
• Interrupt rating: 10 kAIC
• Mounting: surface
• Number of circuits: 16
• Number of spaces: 8
• Phase: single-phase
• Voltage rating: 120/240V
• Wire size: #14-1/0 AWG Cu/Al at 60°C or 75°C
• “Tangential” center knockout easier installation for conduit applications
• Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
• Single keyhole mounting -one keyhole at the top provides easier mounting and leveling
• Drywall marking on enclosure-indicates proper mounting depth for flush applications
• Used with: type BR breakers
