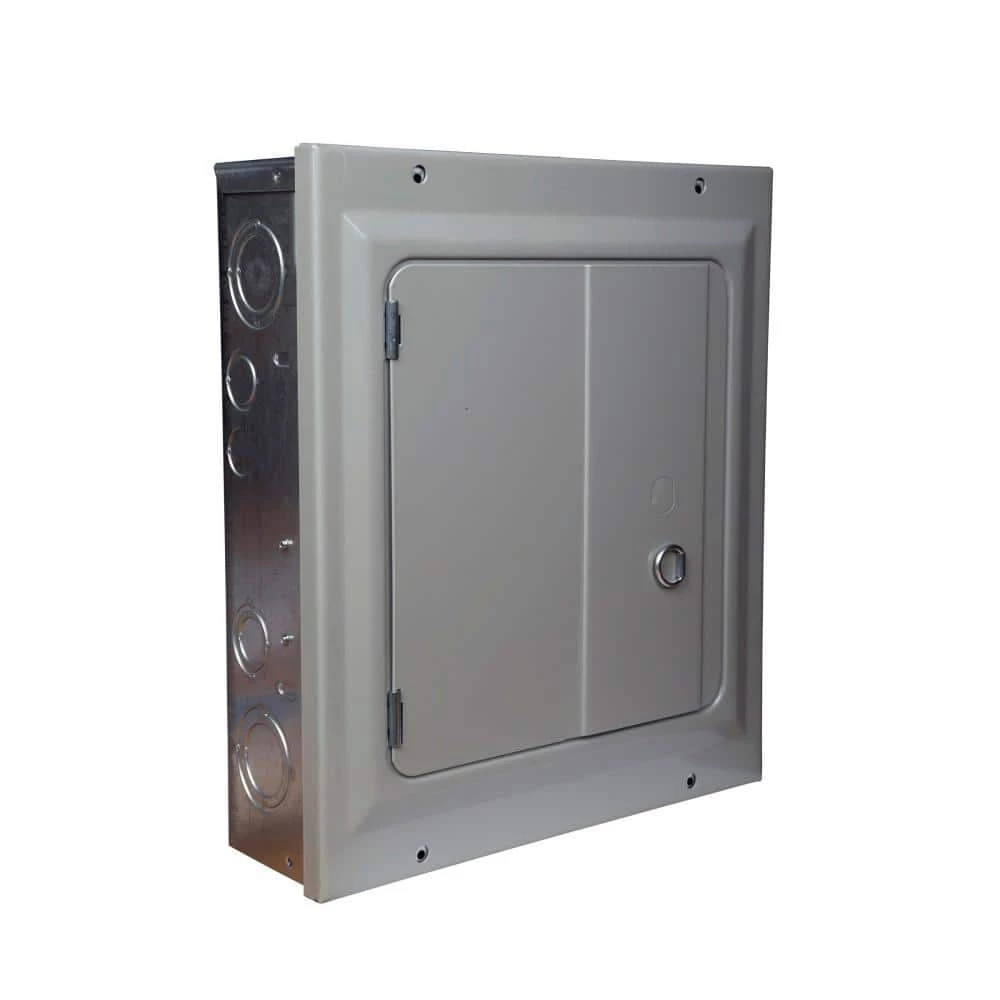

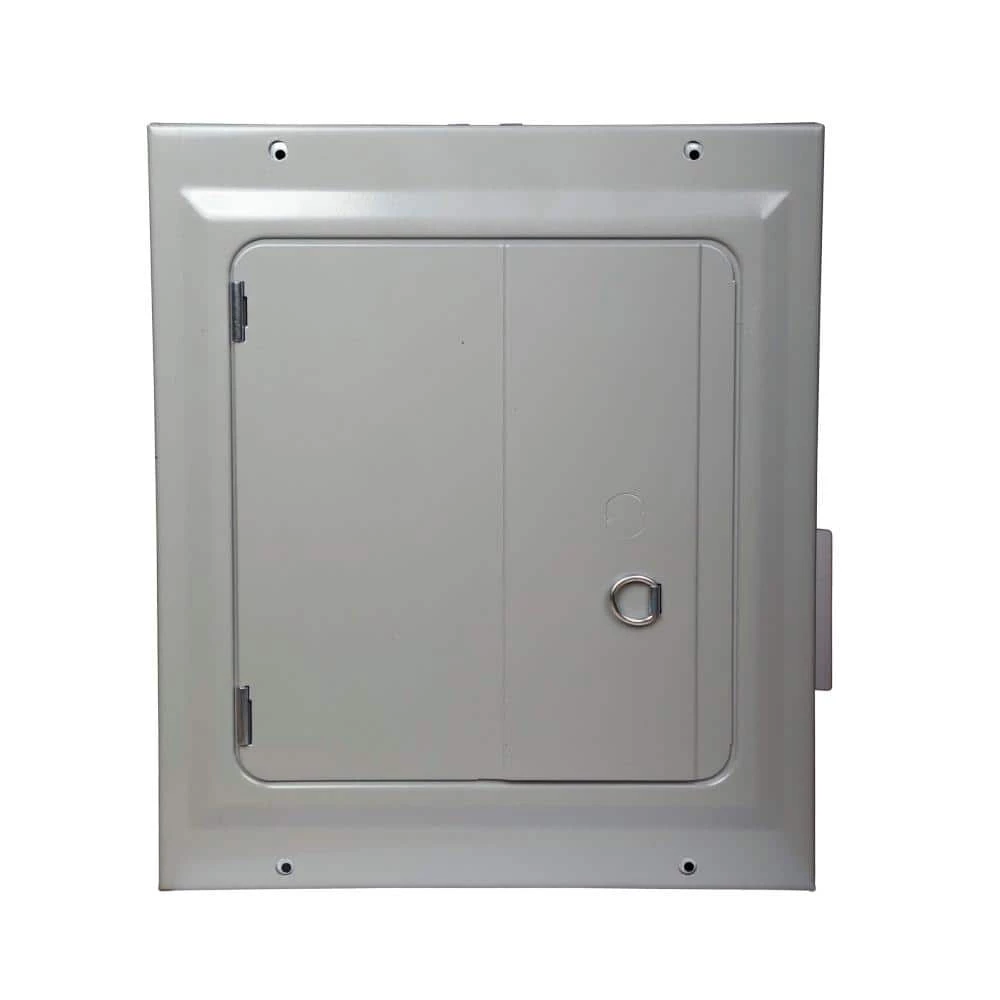

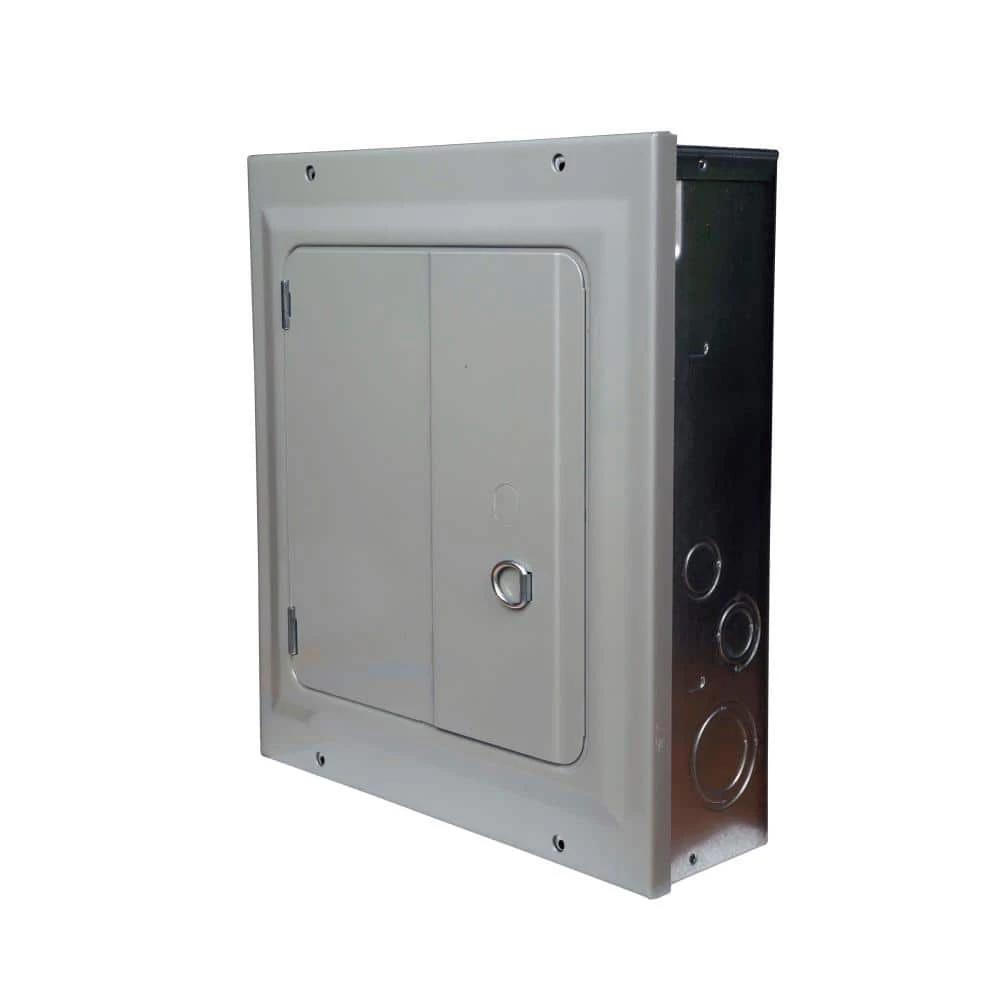

BR 125 Amp 6-Space 12-Circuit Indoor Main Lug Loadcenter with Surface Door and Ground Bar by Eaton
Original price was: $28.09.$17.98Current price is: $17.98.
Tin plated Aluminum bus
Steel backpan for reliable breaker mounting
Optimized knockout locations for easy wiring and installation
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Specially designed for easy installation, Eaton’s BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR612L125SDGP is a 125 amp main lug with 6 spaces and 12 circuits. A ground bar is included.
- Amperage rating: 125A
- Bus material: Aluminum
- Rated NEMA 1 for indoor use
- Interrupt rating: 10 kAIC
- Mounting: Surface
- Number of circuits: 12
- Number of spaces: 6
- Phase: Single-phase
- Voltage rating: 120/240V
- Wire size: #14-1/0 AWG Cu/Al at 60°C or 75°C
- “Tangential” center knockout easier installation for conduit applications
- Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
- Single keyhole mounting – provides easier mounting and leveling
- Drywall marking on enclosure – indicates proper mounting depth for flush applications
- A ground bar is included
- Used With: Type BR breakers
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 8 |
| Load center height (in.) | 13.0 |
| Load center depth (in.) | 3.56 |
| Manufacturer Warranty | 10 Years |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 6 |
| Number of Circuits | 12 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 11.0 |
