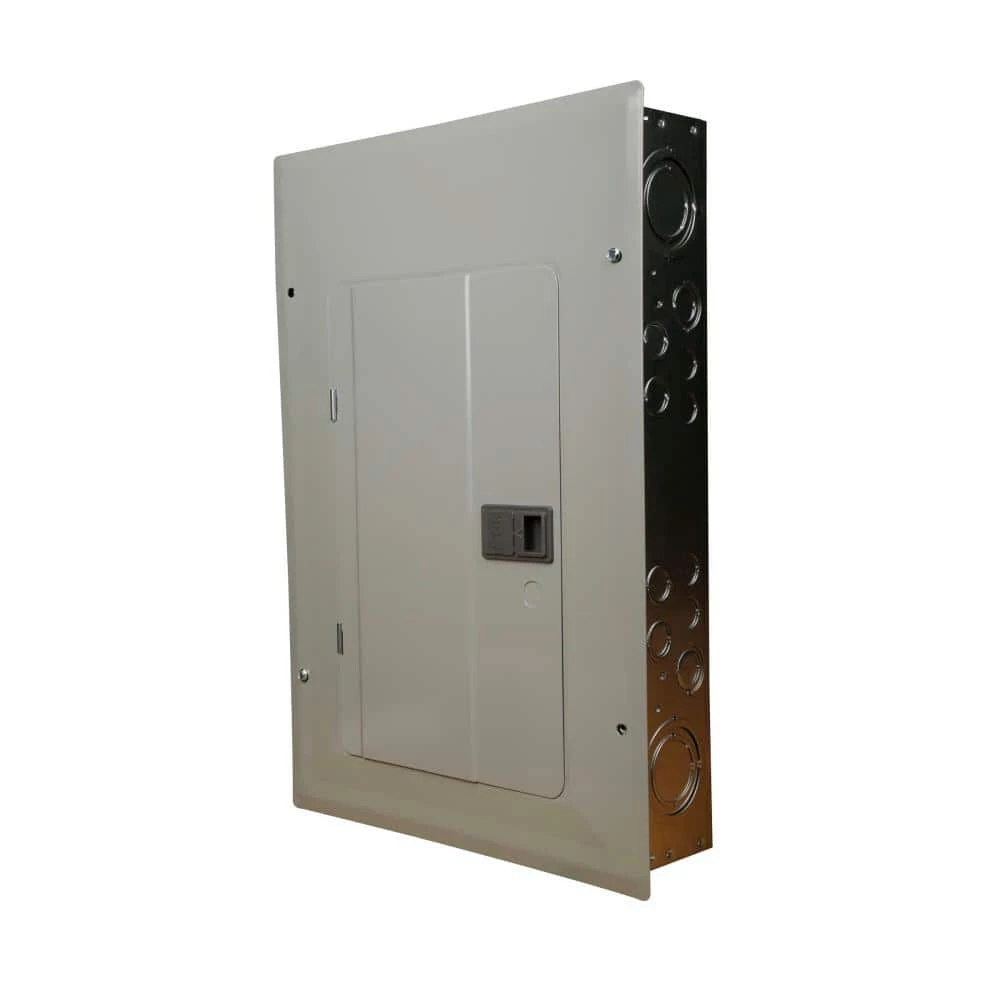

BR 125 Amp 40-Circuit Indoor Main Lug Plug-On Neutral Load Center by Eaton
Original price was: $90.53.$60.66Current price is: $60.66.
Quicker, easier and cleaner installation, saving you time
Plug-on neutral design for ease of installation
Unique self-leveling tabs to allow for quick drywall offset
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.
- Amperage rating: 125 Amp
- Cover: cover included
- Enclosure: NEMA 1
- Interrupt rating: 10 kAIC
- Bus material: aluminum
- Used with: type BR 1 in. breakers
- BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings

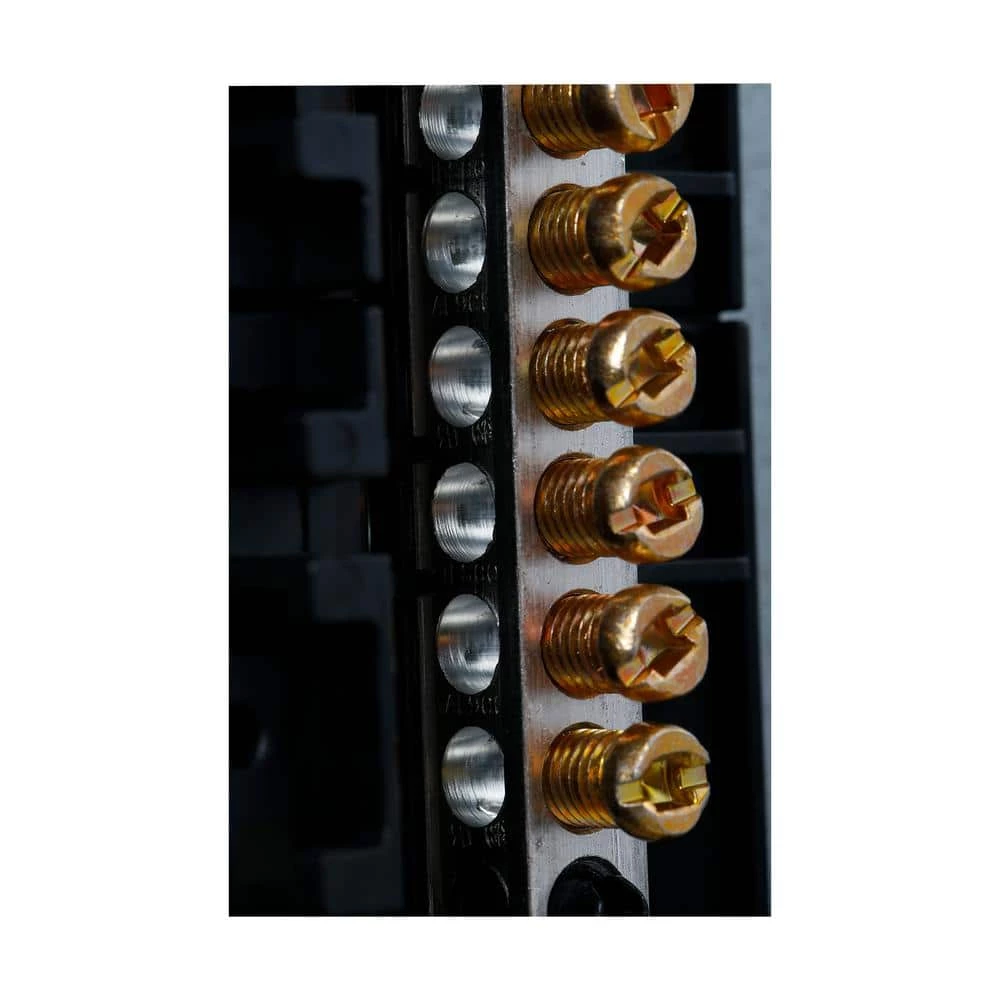

- Dedicated neutral bus for breaker connection
- In-board neutral bar increases gutter space to allow for professional installation of conductors
- Backed out neutral screws allows for quick connection of neutral and ground conductors

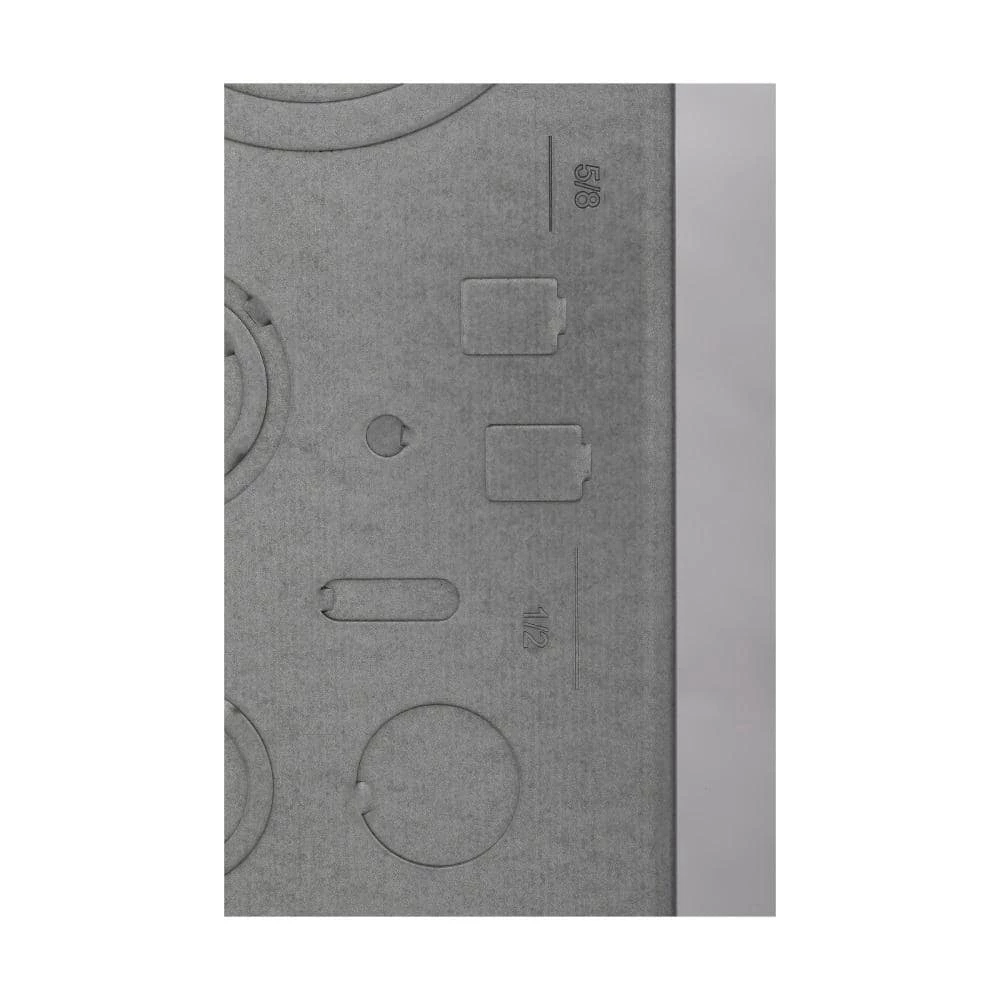

- Optimized knockout locations for additional access and easier to remove
- Self-leveling tabs allow for quick drywall offset and helps simplify installation
- Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
- Rigid cover spine provides strength when twist outs are removed allowing for easier removal
- Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 34.87 |
| Load center height (in.) | 4.5 |
| Load center depth (in.) | 36.5 |
| Manufacturer Warranty | 10 Year Per Warranty Statement |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 20 |
| Number of Circuits | 40 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load center width (in.) | 16 |
