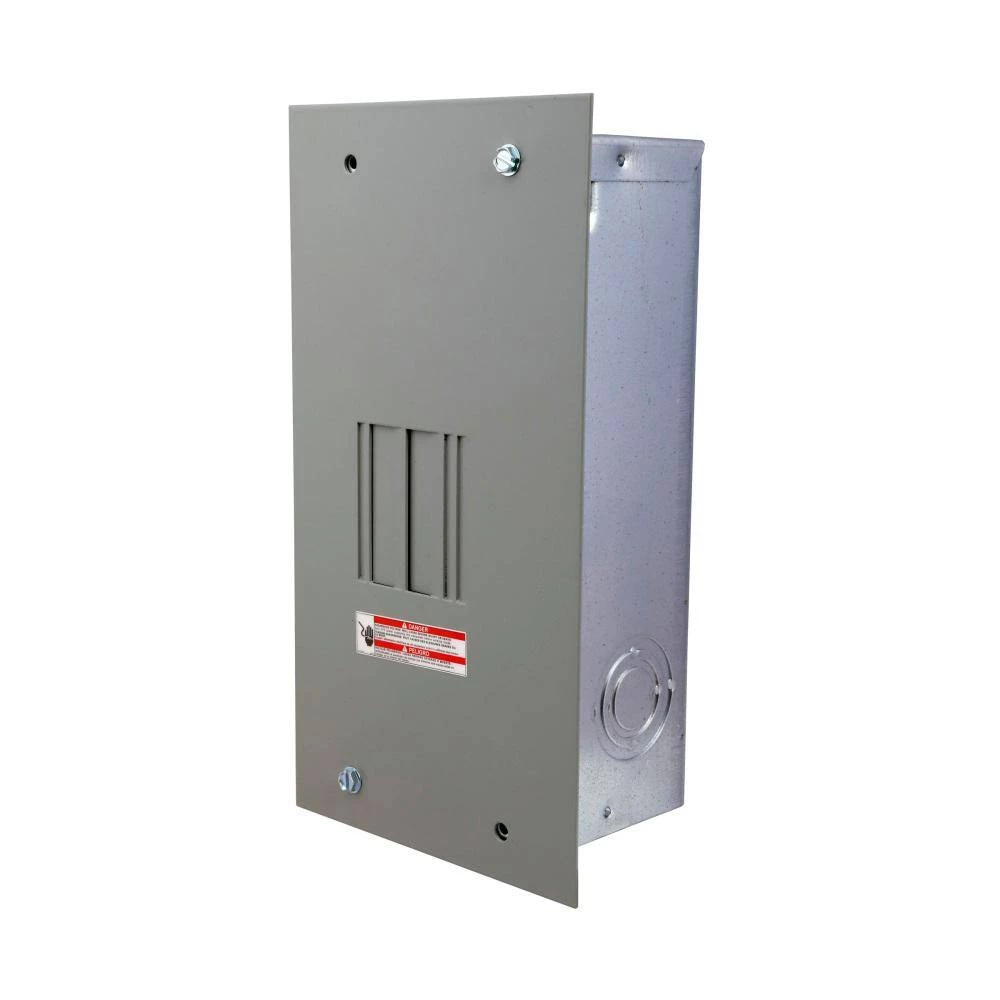

BR 125 Amp 2-Space 4-Circuit Indoor Main Lug Flush Cover by Eaton

Specially designed for easy installation, Eaton’s BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. Eaton has been a trusted name in electrical products for over 100-years.

• Use GBK5CS or GBK520 ground bar, sold separately
• Type: main lug
• Amperage rating: 125 Amp
• Bus material: aluminum
• Enclosure: NEMA 1
• Interrupt rating: 10 kAIC
• Number of circuits: 4
• Number of wires: 3-wire
• Phase: single-phase
• Voltage rating: 120/240-Volt
• Wire size: #14-1/0 AWG Cu/Al
• Used with: type BR 1 in. breakers

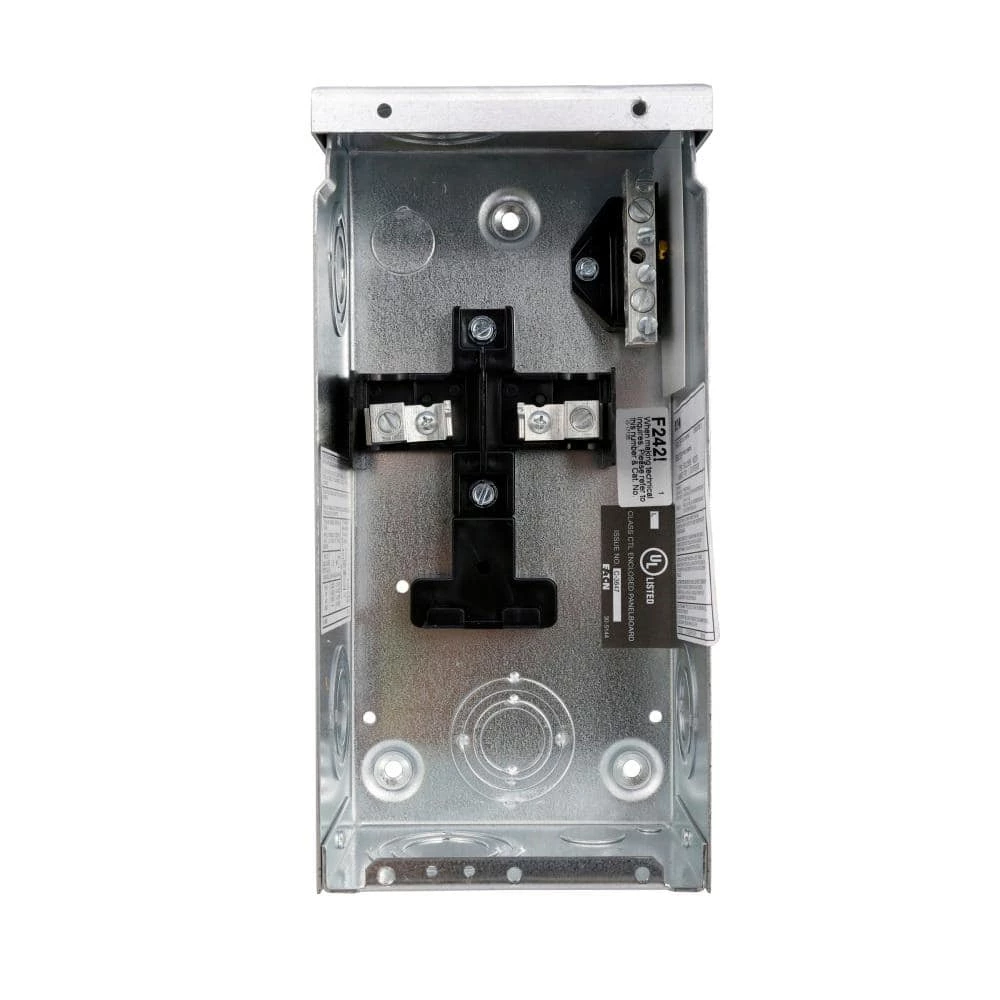

• Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
• Drywall marking on enclosure indicates proper mounting depth for flush applications
• Single keyhole mounting one keyhole at the top and bottom provides easier mounting and leveling
• Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
