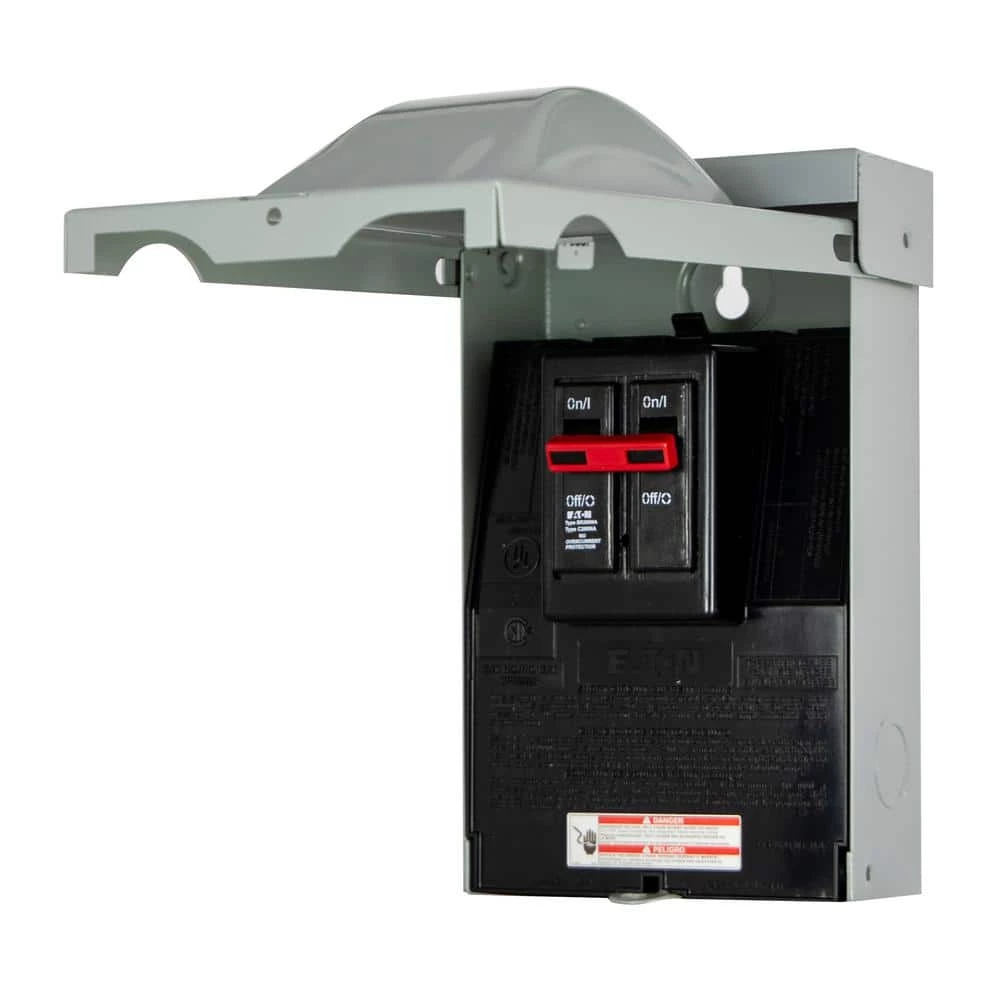

60 Amp Double-Pole AC Type NEMA 3R Disconnect Molded Case Switch by Eaton
Original price was: $18.44.$13.46Current price is: $13.46.
Plug-in molded case switch removes the need for pullout handles
No need for replacement pullout handles due to loss or theft
Break resistant “snap in cover” eliminates need for screws
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
An Air Conditioning (AC) Disconnect provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit. The Eaton Cutler-Hammer 60 Amp 120/240-Volt 14,400-Watt Molded Case Switch AC Disconnect is ANSI certified and CSA and UL listed. The unit is approved for outdoor use and features a metallic enclosure with a molded switch. This safety switch is designed to disconnect power from an air-conditioning unit and is rated for up to 240-Volt.
- Amperage rating: 60 Amp
- Rated NEMA 3R for outdoor use
- Single-phase, 2-wire, 240 vac and 3-phase, 3-wire, 240 vac
- Easy-to-remove high strength protective shield for easier wiring and mounting
- Easy-to-remove front cover (no screws or fasteners to remove)
- 1 in. knockouts on the bottom, back and side of unit
- Copper-rated line and load lugs that are easily accessible
- Ample wiring space for mounting with a stud gun (single keyhole, 2 or 3 point mounting)
- Padlockable door provision for safety and reduction of tampering
- Metallic enclosures are bottom entry and exit only
- Non-metallic enclosures have knockouts and a hub provision for top access
- Non-metallic enclosures have a single unit door and protective shield for installer convenience
- Non-metallic enclosures are durable and provide excellent resistance to climate changes
| Electrical Product Type | Disconnect |
|---|---|
| Returnable | 90-Day |
| Product Height (in.) | 8.7 |
| Product Depth (in.) | 2.54 |
| Manufacturer Warranty | 1 year limited |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Voltage (volts) | 120/240 |
| Type | Air Conditioner |
| Product Weight (lb.) | 3.4 |
| Fuse Type | Specialty |
| Power Distribution Features | No Additional Features |
| Phase Type | 1 Phase |
| NEMA Configuration | NEMA 3R |
| Maximum Wattage | 14400 W |
| Maximum Amperage (amps) | 60 |
| Indoor/Outdoor | Outdoor |
| Fused | Non-Fused |
| Product Width (in.) | 5.4 |
