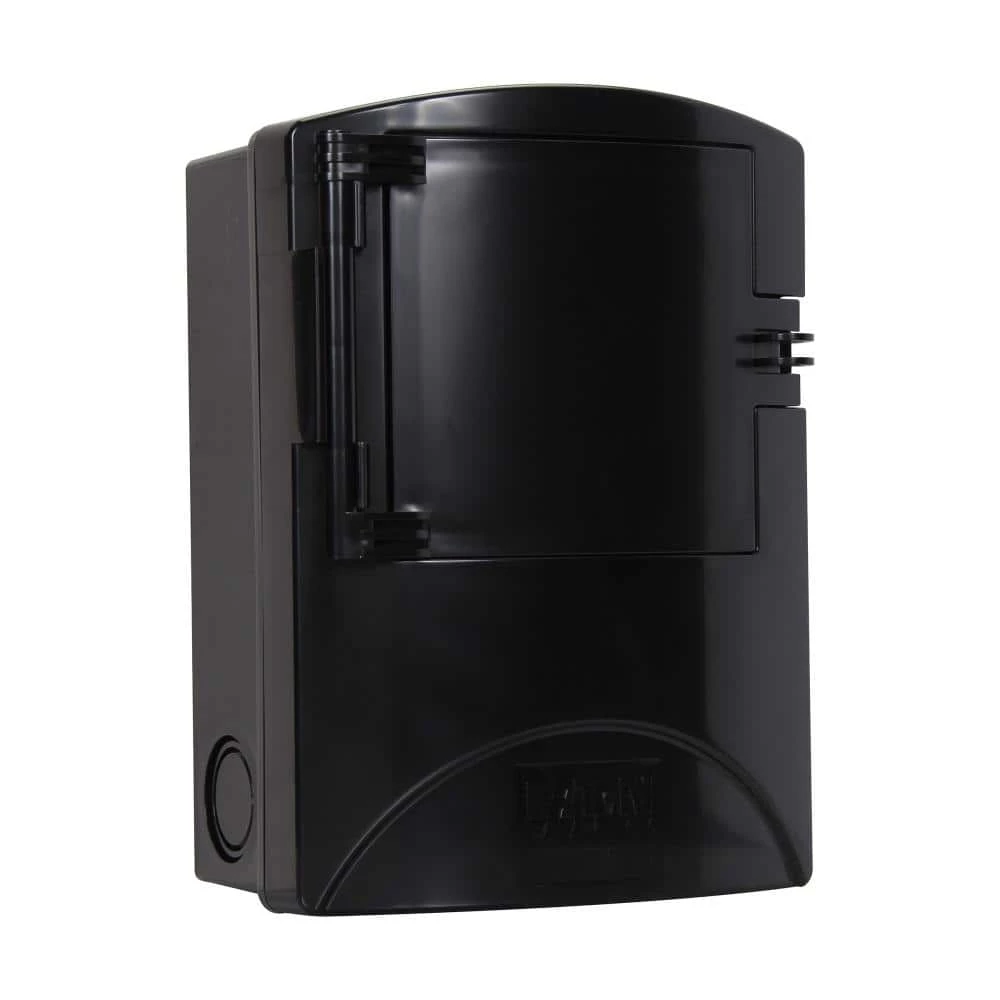

60 Amp 2-Pole NEMA 3R AC Disconnect by Eaton
Original price was: $16.81.$10.42Current price is: $10.42.
Applications include air conditioners, heat pumps, water heaters
Visibility located between the loadcenter and the air conditioner
Non-metallic unit is commonly used in coastal or salt water areas
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
An Air Conditioning (AC) Disconnect provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit. The AC222URNMP-A2 is a 60 Amp 120/240-Volt Non-Fused AC Disconnect.
- Amperage Rating: 60A
- Rated NEMA 3R for outdoor use
- Enclosure material is polycarbonate
- Non-fused pullout
- Voltage rating is 120/240V
- Interrupt Rating is 10 kAIC

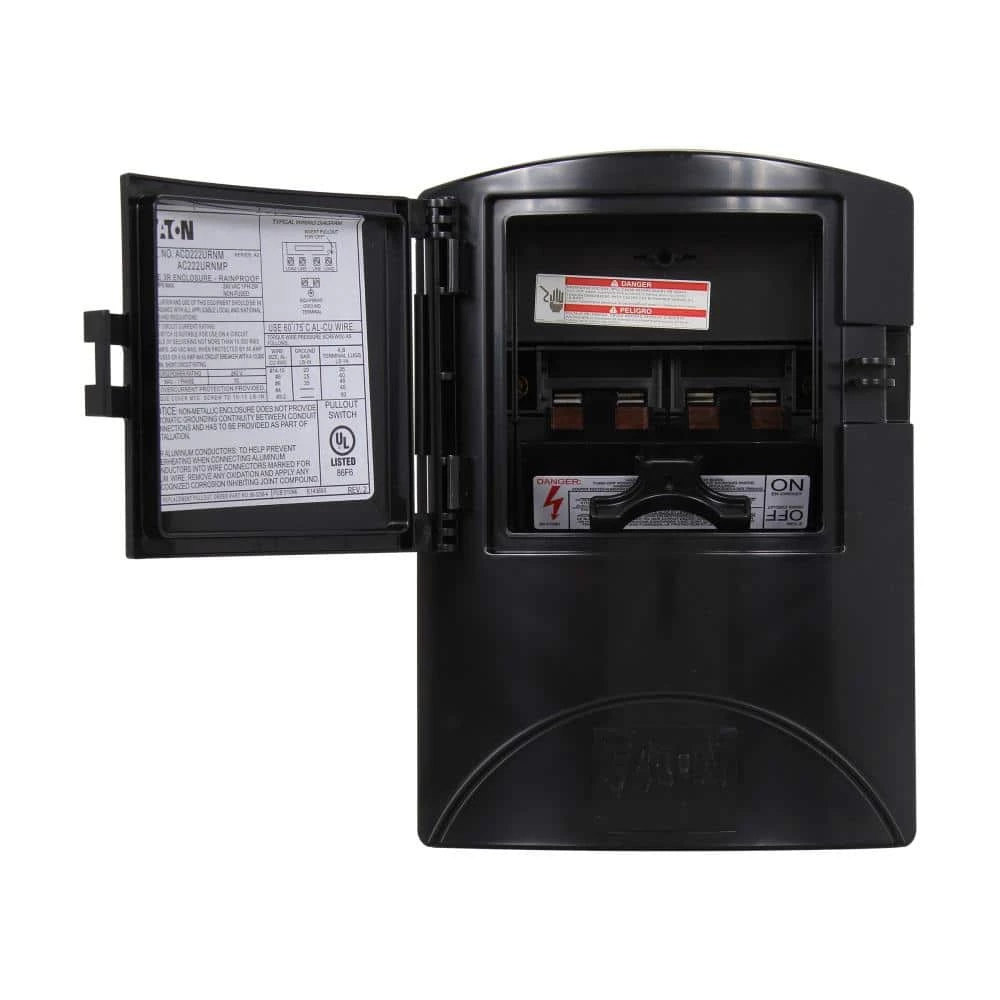

- Easy-to-remove front cover (no screws or fasteners to remove)

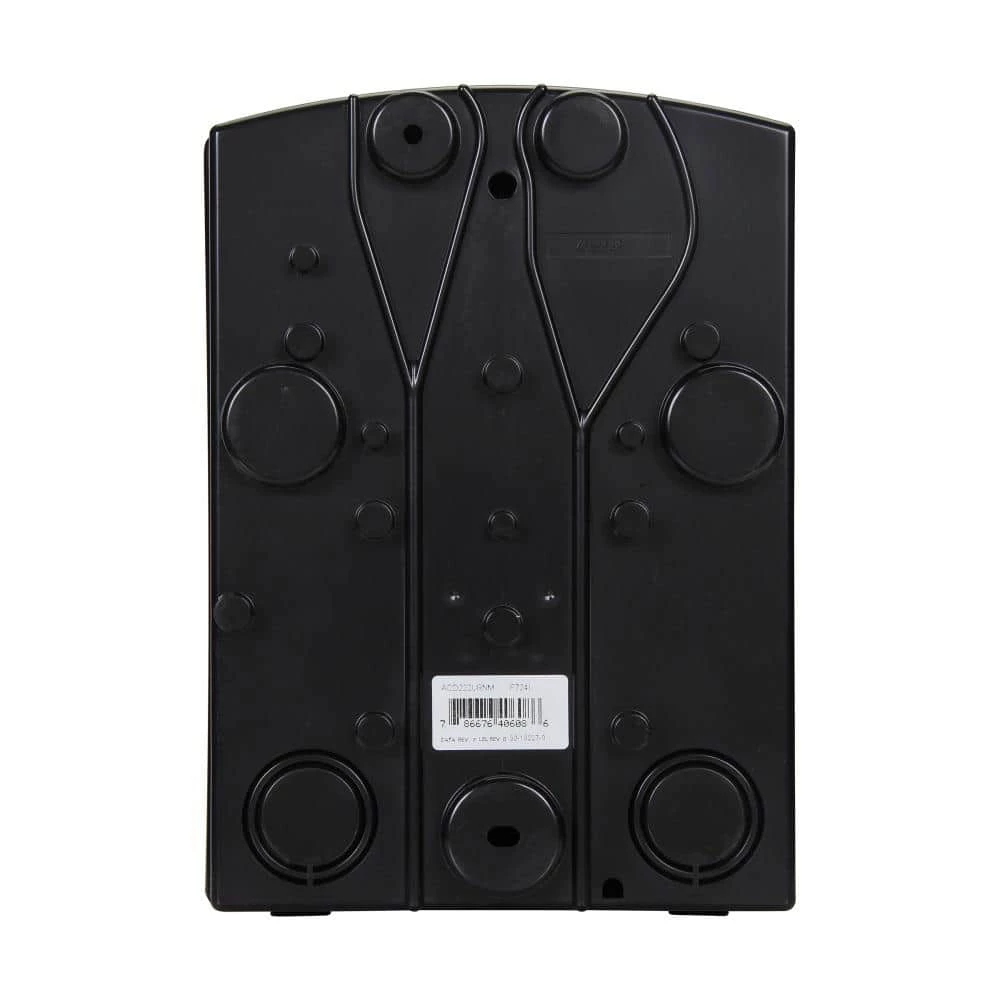

- Non-metallic enclosures have knockouts and a hub provision for top access
- Non-metallic enclosures have a single unit door and protective shield for installer convenience
- Non-metallic enclosures are durable and provide excellent resistance to climate changes
| Electrical Product Type | Disconnect |
|---|---|
| Returnable | 90-Day |
| Product Height (in.) | 8.7 |
| Product Depth (in.) | 3.59 |
| Manufacturer Warranty | 1 year limited |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Voltage (volts) | 120/240 |
| Type | Air Conditioner |
| Product Weight (lb.) | 1.2 |
| Fuse Type | Specialty |
| Power Distribution Features | No Additional Features |
| Phase Type | 1 Phase |
| NEMA Configuration | NEMA 1 |
| Maximum Wattage | 14400 W |
| Maximum Amperage (amps) | 60 |
| Indoor/Outdoor | Outdoor |
| Fused | Non-Fused |
| Product Width (in.) | 6.26 |
