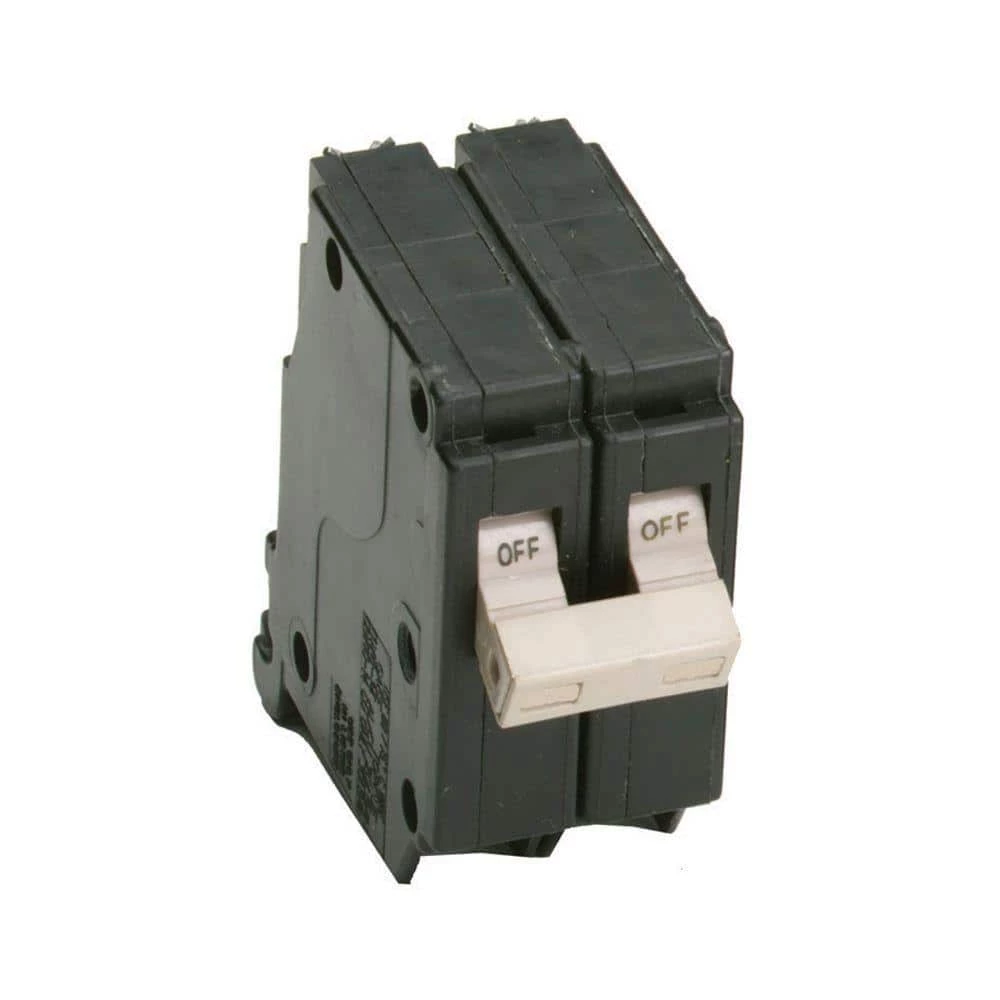

40 Amp 3/4 in. Double-Pole Type CH Circuit Breaker by Eaton

Name: One of our new design 40 Amp 3/4 in. Double-Pole Type CH Circuit Breaker by Eaton on 2021 Wallplatesdeals.com
SKU: Eaton 100199178
Price: 22.23 USD
Availability: InStock

Original price was: $33.68.Current price is: $22.23.

Double pole breaker suitable for use in group motor installations
Interrupts current surge to protect wires and avoid overheating
Trip flag indicates the status with a 1-step reset feature

SKU: Eaton 100199178 Categories: Circuit Breakers, Electrical Panels & Protective Devices, Power Distribution Tags: 40, 90-Day, Eaton, No Additional Features, Plug-On

Your questions, our prompt answers.
The home of quality products.
Your needs, our top priority.
The best quality products, always.

Eaton’s Type CH circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). Our CH breakers are 3/4 in. wide and trip to the off position. They are available in 1, 2 or 3-poles from 10 to 150 Amp. In addition, arc fault and ground fault breakers are available in the Type CH line. All of our Type CH breakers come with a lifetime warranty and are made exclusively for Type CH Load centers.

Typically used with ovens, clothes dryers and water heaters
Trips to the off position
Requires two 3/4 in. spaces
HACR rated
Solid and stranded wire can be used together
Use with type CH load centers only
Note: Product may vary by store

Breaker Type	Double Pole
Electrical Product Type	Breaker
Interruption Type	Standard Trip
Maximum Amperage (amps)	40
Mounting Type	Plug-On
Number of Poles	2
Pack Size	1
Power Distribution Features	No Additional Features
Product Weight (lb.)	0.45
Returnable	90-Day
Voltage (volts)	120/240
Certifications and Listings	ANSI Certified,CSA Certified,UL Listed
Manufacturer Warranty	Limited Lifetime Warranty according to the Warranty Policy
Product Depth (in.)	3.5 in
Product Height (in.)	3 in
Product Width (in.)	1.48
