225 Amp 1-Phase Plug-On Neutral Load Center by Eaton
Original price was: $126.46.$93.58Current price is: $93.58.
Protects wires going toward individual electrical loads
Features a copper bus
Mainly used as main lug or main breaker load center
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.

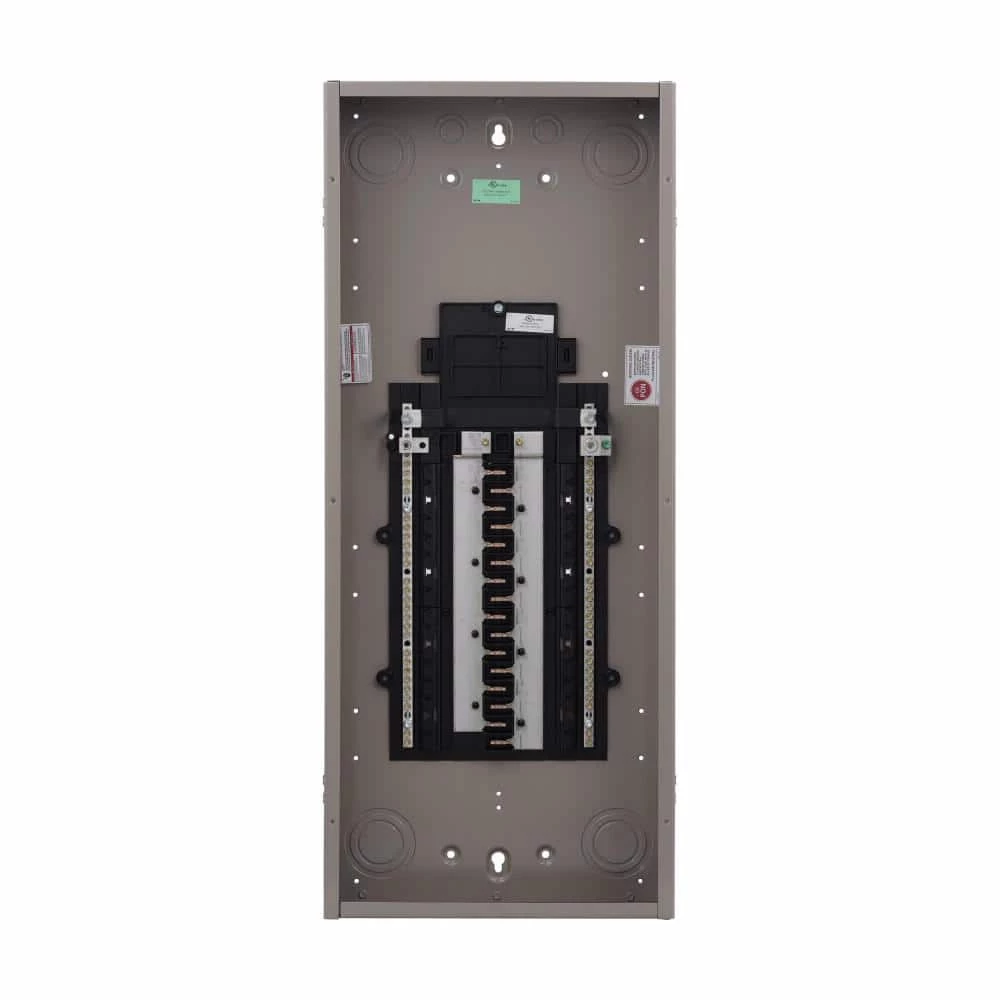

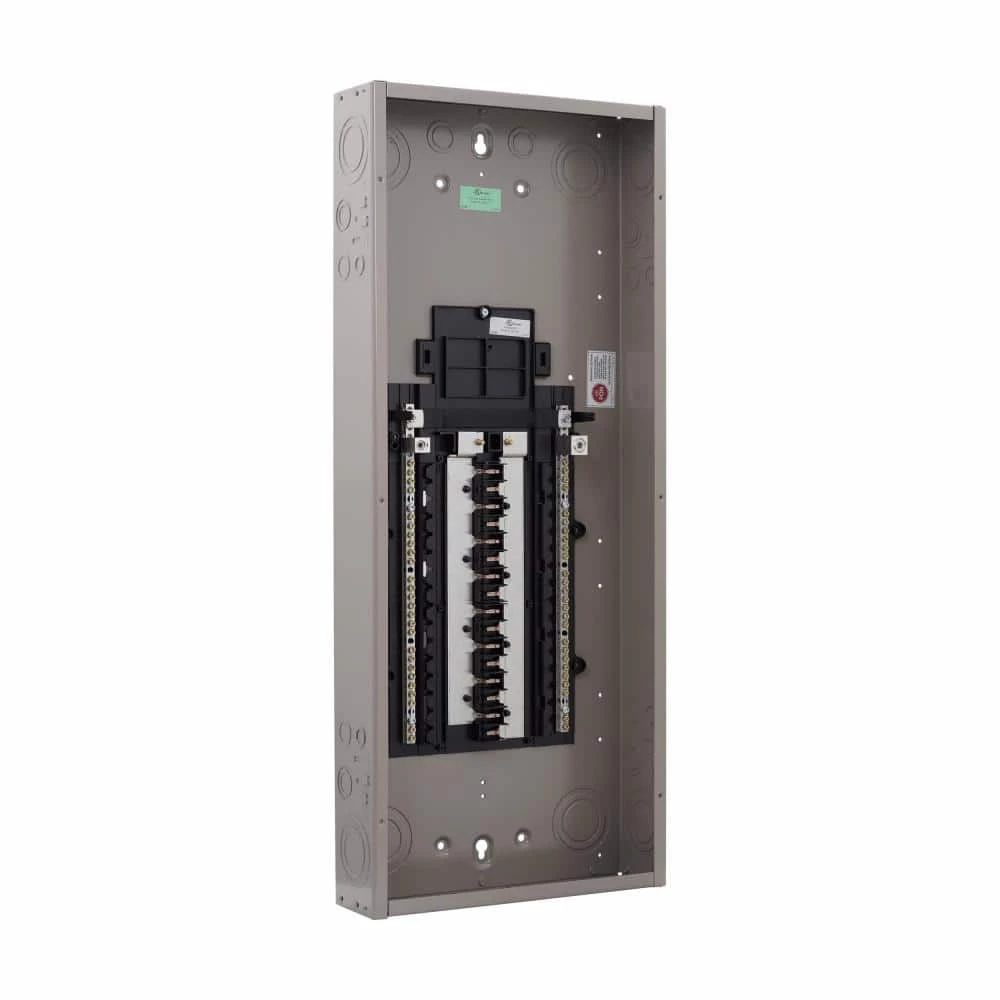

Specially designed for easy installation, Eaton’s CH plug on neutral load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This is a convertible type load center. It can either be used as a main lug or main breaker load center. In addition to the load center a cover and either a main breaker kit or main lug kit must be purchased. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
- Amperage rating: 225 Amp
- Bus material: copper
- Rated NEMA 1 for indoor use
- Feed type: overhead or underground
| Electrical Product Type | Load Center |
|---|---|
| Number of Spaces | 32 |
| Load center height (in.) | 34.5 |
| Load center depth (in.) | 4 |
| Manufacturer Warranty | Limited lifetime |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240/120 |
| Returnable | 90-Day |
| Product Weight (lb.) | 1 lb |
| Phase Type | 1 Phase |
| Number of Gangs | 1 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 32 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Meter Socket Type | Ring |
| Maximum Amperage (amps) | 225 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 15 |
