100 Amp 120/240-Volt 24,000-Watt Non-Fused General-Duty Double-Throw Safety Switch by Eaton
Original price was: $222.43.$96.99Current price is: $96.99.
Transfer service from usual power source to an alternate source
Commonly applied in emergency power or generator applications
Provides an economical means of transferring power
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.

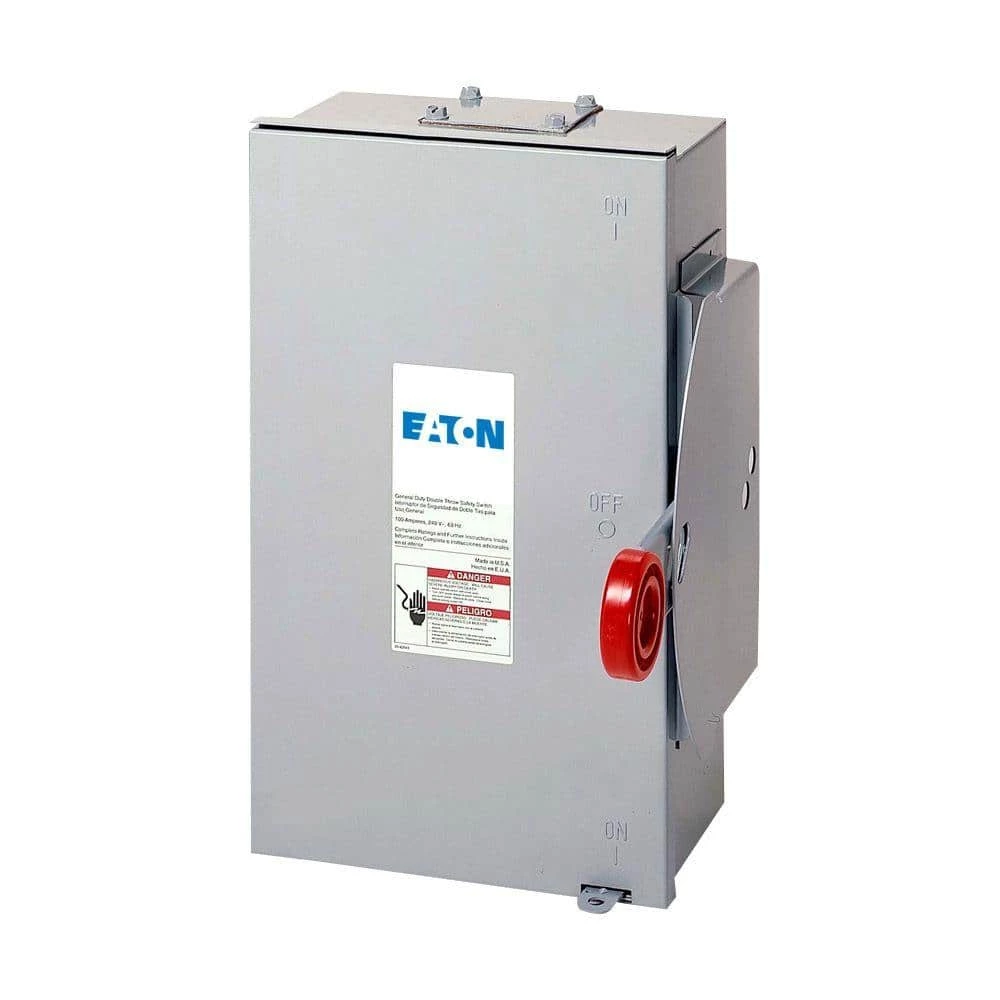

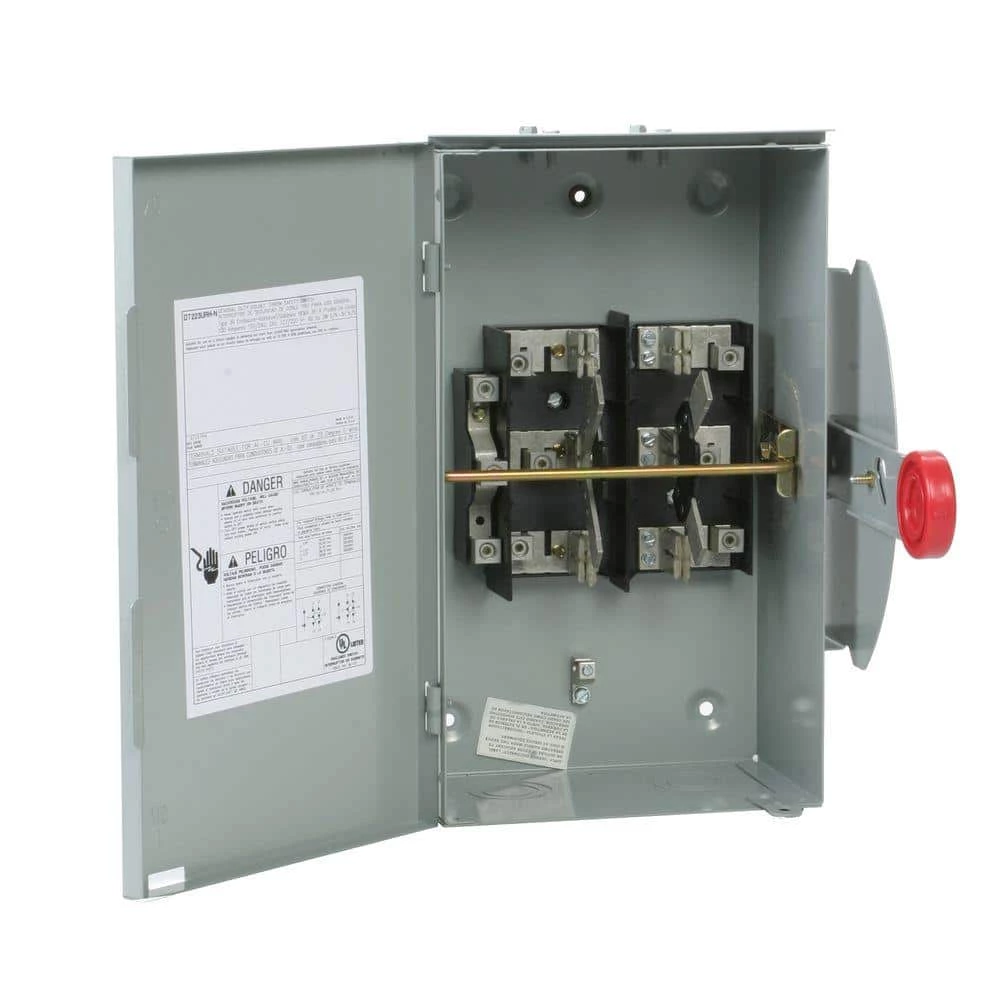

Non-fusible safety switches provide a means to manually connect or disconnect the load from the source. The Eaton 100 Amp 120/240-Volt 24,000-Watt Non-Fused General-Duty Double-Throw Safety Switch has a rainproof, metallic case that is approved for outdoor use. The unit is ANSI certified and UL listed with a single phase and double throw. The switch is intended to open or close an electrical circuit in general-duty applications.
- Use to open or close an electrical circuit in general-duty applications
- Amp rating is 100 Amp
- Rated NEMA 3R for outdoor use with side door opening
- Enclosure material is painted galvanized steel
- Fuse configuration is non-fusible
- Voltage rating is 240-Volt 250-Volt
- Palm-fitting visible red handle
- Concentric knockouts on bottom end wall and sides
- Lockable handle
- Mechanical door interlock to prevent easy access when the switch is in the ON position
- Visible, embossed red ON-OFF indication
| Automatic/Manual | Manual |
|---|---|
| Power Distribution Features | No Additional Features |
| Product Height (in.) | 9.6 |
| Product Depth (in.) | 14.6 |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 11.1 |
| Phase Type | 1 Phase |
| Electrical Product Type | Safety Switch |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 3R |
| Maximum Wattage | 24000 W |
| Maximum Amperage (amps) | 100 |
| Indoor/Outdoor | Outdoor |
| Fused | Non-Fused |
| Features | Mountable,On/Off Switch |
| Product Width (in.) | 5.3 |
