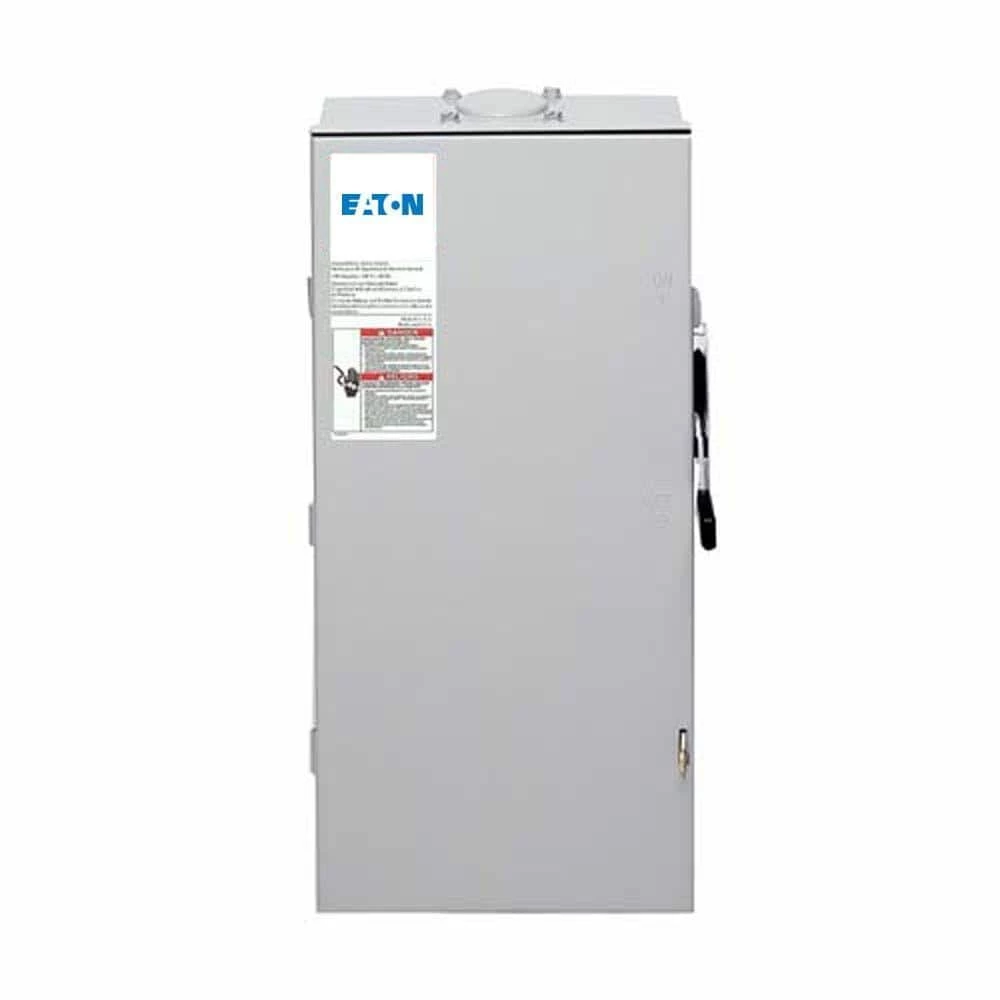

100 Amp 120/240-Volt 24,000-Watt Fused Safety Switch by Eaton
Original price was: $189.46.$95.99Current price is: $95.99.
Suitable for light duty motor circuits and service entrance
Ample wiring bending space provides for easier installation
Additional door locking capability
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Fusible safety switches provide a means to manually open and close a circuit and provide overcurrent protection by means of installed fuses The Eaton Cutler-Hammer 100 Amp 120/240-Volt 24,000-Watt Fused Safety Switch features 3 phases and a metallic case that is approved for outdoor use.
- Amp Rating is 100A
- Type is general duty cartridge fuse
- Rated NEMA 3R for outdoor use
- Enclosure material is painted galvanized steel
- Fuse configuration is fusible with neutral
- Voltage rating is 240- Volt
- Number of wires is 4
- Number of Poles is 3
- Fuse class provision – Class H fuses (fuses sold separately)
- Ample wire bending space provides for easier installation
- Double and triple padlocking capability increases personnel safety
- The handle position (ON or OFF) can be clearly seen from a distance and the length provides for easy operation
- Visible double-break rotary blade mechanism offers two points of contact for a positive open and close, easier operation, and to help prevent contact burning for longer contact life
| Automatic/Manual | Manual |
|---|---|
| Product Weight (lb.) | 13.45 |
| Product Height (in.) | 9.1 |
| Product Depth (in.) | 18.8 |
| Manufacturer Warranty | 1 Year from date of purchase |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Power Distribution Features | Fusible |
| Electrical Product Type | Safety Switch |
| Phase Type | 3 Phase |
| NEMA Configuration | NEMA 3R |
| Maximum Wattage | 24000 W |
| Maximum Amperage (amps) | 100 |
| Indoor/Outdoor | Outdoor |
| Fused | Fused |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Product Width (in.) | 7.3 |
