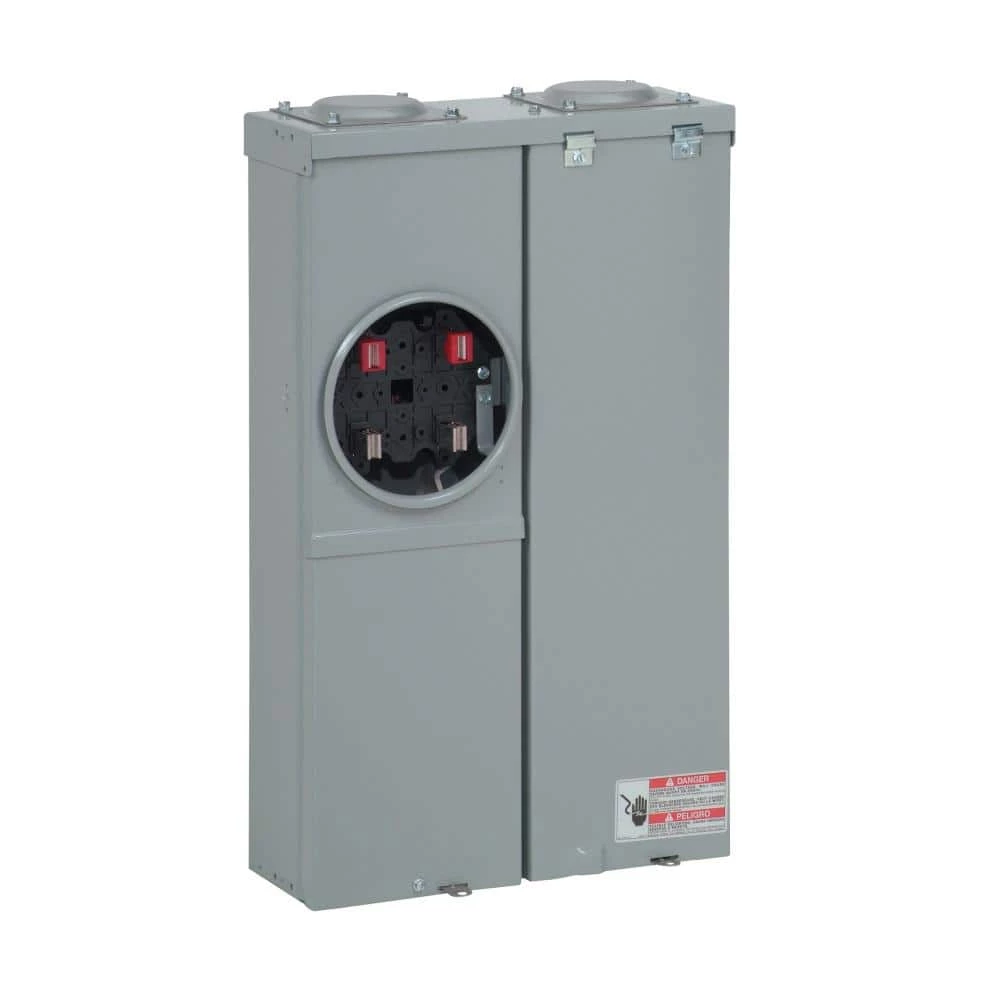

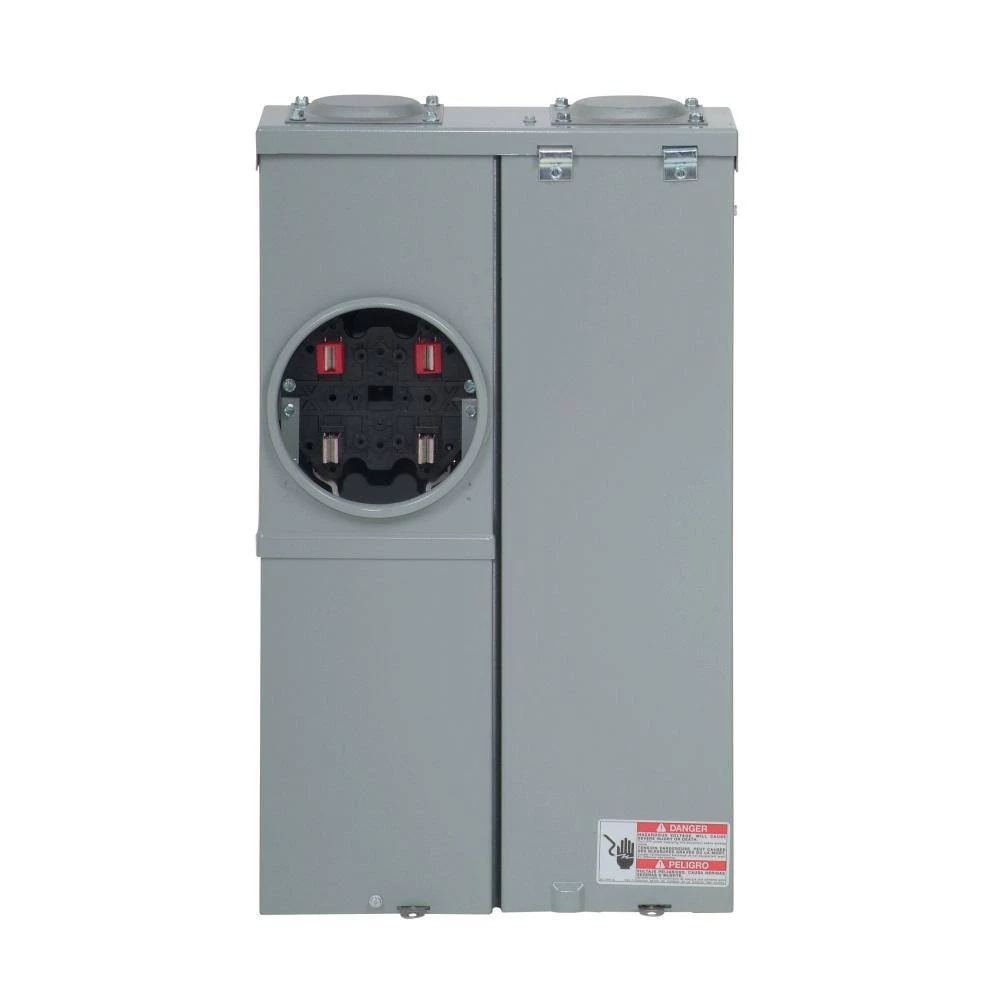

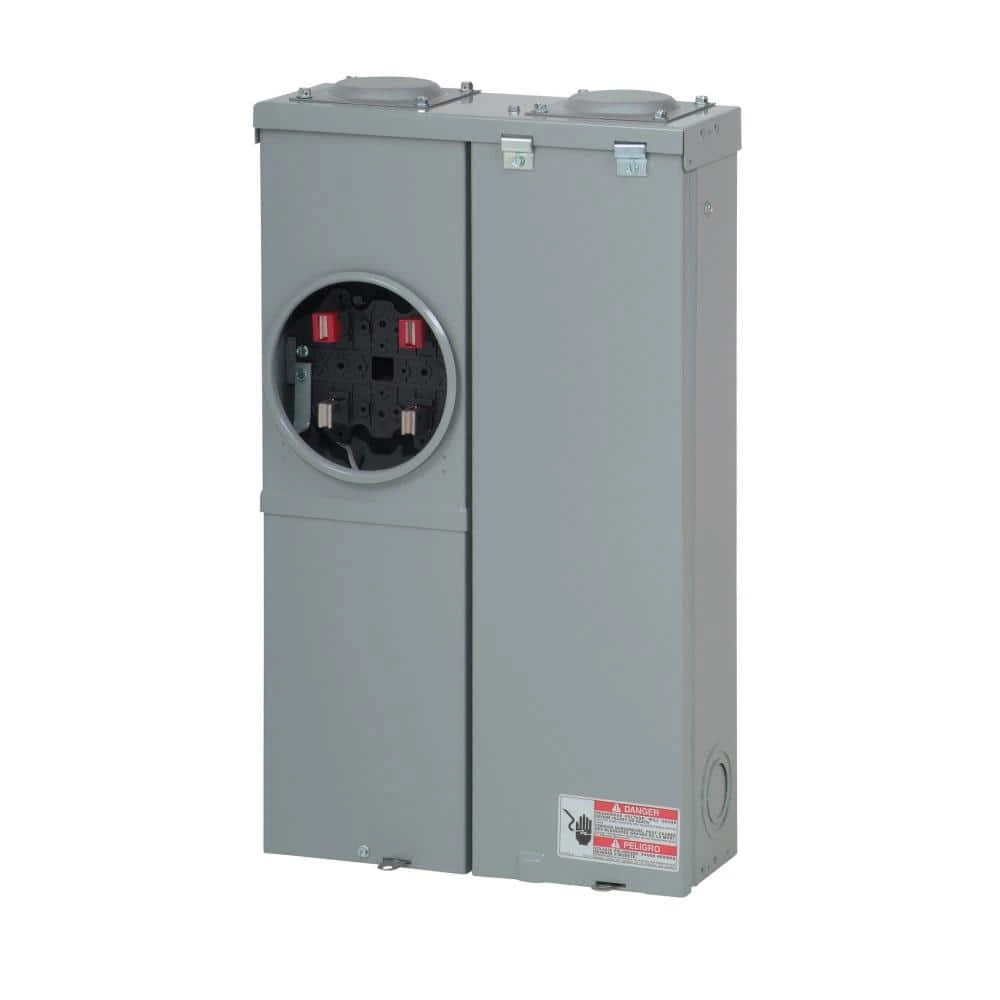

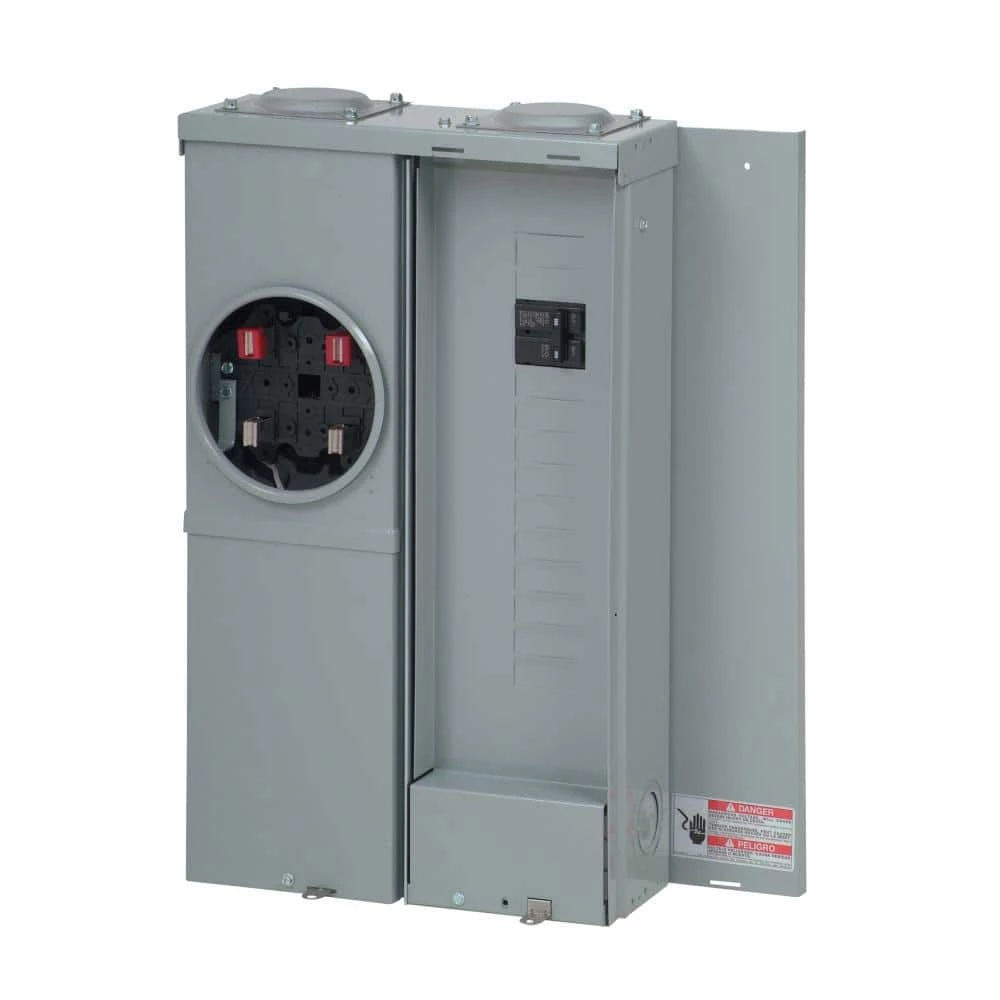

100 Amp 12-Space 24-Circuit BR Type Main Breaker Meter Breaker Surface EUSERC by Eaton
Original price was: $93.93.$58.24Current price is: $58.24.
Commercial grade main breaker
Tin plated Aluminum bus
Steel backpan for reliable breaker mounting
- Your questions, our prompt answers.
- The home of quality products.
- Your needs, our top priority.
- The best quality products, always.
Eaton’s residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center or a meter socket and main breaker combined in one enclosure. This design provides the contractor with labor and material savings. The meter breakers are constructed to meet the latest NEC wire bending space requirements. The MBE1224B100BTS is a 100 Amp, 12 space and 24 circuit outdoor panel. This is a EUSERC rated panel.
- Type BR EUSERC residential meter breaker
- Amperage rating: 100 Amp
- Bus material: aluminum
- Rated NEMA 3R for outdoor use
- Feed type: overhead/underground
- Interrupt rating – 10 kAIC
- Main circuit breaker: BR2100
- Mounting: surface mounting
- Number of spaces: 12
- Number of circuits: 24
- Number of jaws: 4-jaws
- Number of sockets: 1
- Phase: single-phase
- Security: ring
- Voltage rating: 120/240-Volt
- Used with: type BR breakers
| Electrical Product Type | Load Center |
|---|---|
| Phase Type | 1 Phase |
| Load center height (in.) | 23.88 |
| Load center depth (in.) | 5.38 |
| Manufacturer Warranty | 10 Years |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 30.5 |
| Number of Spaces | 12 |
| Indoor/Outdoor | Outdoor |
| Number of Gangs | 1 |
| Number of Circuits | 24 |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Bolt On |
| Meter Socket Type | Ring |
| Maximum Amperage (amps) | 100 |
| Load Center Type | Combination |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 14.44 |
